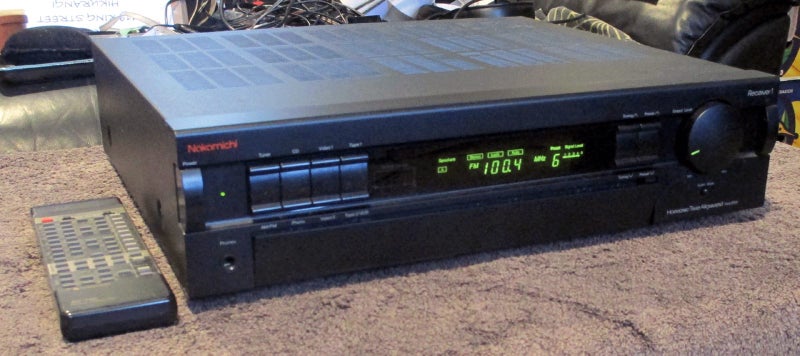

Nakamichi Receiver 1 stereo receiver - dark grey :

Well tested prior to listing, this is a top value vintage receiver which includes a modified AV-1RC remote

Main controls and those inside the front cover : serviced for best audio

Specifications [abridged] :
Vintage : 1990 to 1992 model
Power : 80W RMS [20Hz to 20kHz, at rated THD distortion 0.1%]
Dynamic output power : 110watts at 8ohms, 140W at 4ohms
Signal to noise : > 100dB at rated power, 83dB [IHF A-202 weighted]
Total harmonic distortion : < 0.1% [20Hz to 20kHz, 8ohms at rated power]
Output current capability : 18A per channel
Preamp section :
Sensitivity [ 1W output] : phono: 0.28mV, CD/tape/video: 17mV, Main in: 111mV
Input impedance : Phono: 47kohms, CD/tape/video: 20kohms, Main in: 20kohms
Total harmonic distortion : <0.008%
Phono RIAA deviation : 30Hz to 20kHz ±0.5dB
Signal to noise ratio : Phono MM: >76dB
Tone controls : bass: 20Hz ±10dB, treble: 20kHz ±10dB
Variable loudness : 20Hz +20dB, 20kHz +6dB
Subsonic filter (phono} : cutoff 20Hz at -6dB/octave
FM :
Tuning frequencies : 87.5MHz to 108.0MHz [50kHz steps]
Usable sensitivity : mono: 11dBf / 1.9µV
Quieting sensitivity [-50dB] : mono: 23.0dBF / 7.7µV, stereo: 44.0dBf / 86.8µV
Signal to noise ratio [65dBf] : mono: > 72dB, stereo: 67dB
Muting threshold : 30dBf / 17.3µV
Frequency response : 20Hz to 15kHz ±1.0dB
Total harmonic distortion : mono: < 0.20%, stereo: 0.25%
Capture ratio : 2dB
Alternate channel selectivity : 70dB [±300kHz]
Stereo separation [1kHz] : > 40dB
Spurious response rejection : > 90dB
AM :
Frequency range : 522kHz to 1611kHz [9kHz steps]
Sensitivity : 53dBµ/m
Signal to noise [at 90dBµ/m] : > 52dB
Total harmonic distortion [at 90dBµ/m] : < 0.5%
Selectivity : > 20dB [± 10kHz]
Headphone output : 187mW [at 40ohms]
Dimensions [W x H x D]: 430 x 100 x 370mm
Weight : 11.5kg, - packed 13kg Please click here to ask a question
