M.2 NGFF to Desktop PCIe x4 x8 x16 NVMe SATA Dual SSD PCI Express Adapter Card

M.2 NGFF to PCIE Adapter Card Features:

�Connect M.2 NVMe and M.2 SATA drive to a desktop computer. Transfer speed 8Gbps

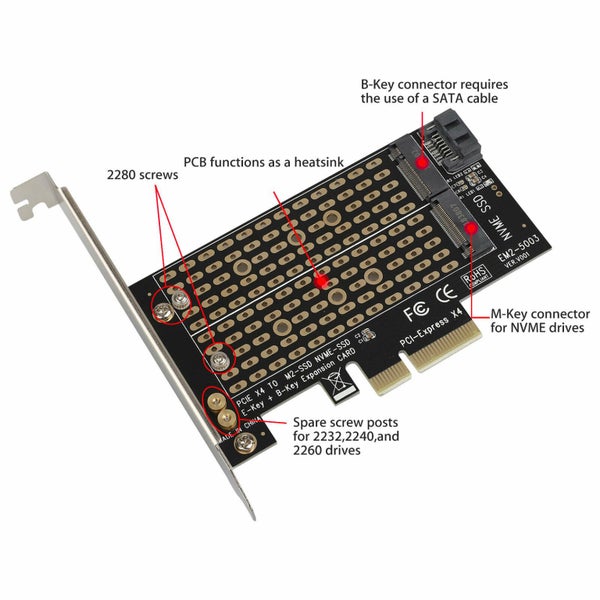

�M-Key NVMe and AHCI drives interface directly with the PCIe bus. B-Key SATA drives require the use of a SATA cable (not included).

�M.2 NGFF to PCIE Adapter Card Fits a PCIe x4, x8, or x16 slot.

�Robust design includes mounting brackets and a heat dissipating PCB.

�The M.2 drive communicates directly with the PCIe and SATA bus. Both slots can be used

�M.2 NGFF to PCI-E X4 transfer card, there are 4 fixed holes on the board, 22 x 32 mm, 22 x 42 mm, 22 x 60 mm, 22 x 80 mm, respectively.

�It supports M.2 for Samsung PM961, 960EVO, SM961, PM951, sm951, INTEL 600P, LITE-ON T10 and other NVME and SATA protocols.

Specification: Type : Dual M.2 NGFF to PCIe X4 Adapter Card Compliant with : m.2 size: 2230 2242 2260 2280 support M.2 Type : M-Key and B-Key M.2 Interface : PCI-E X4 Suitable slot : PCIe X4, X8, X16 transfer speed : 8Gbps Support System : Windows, Linux Mac OS

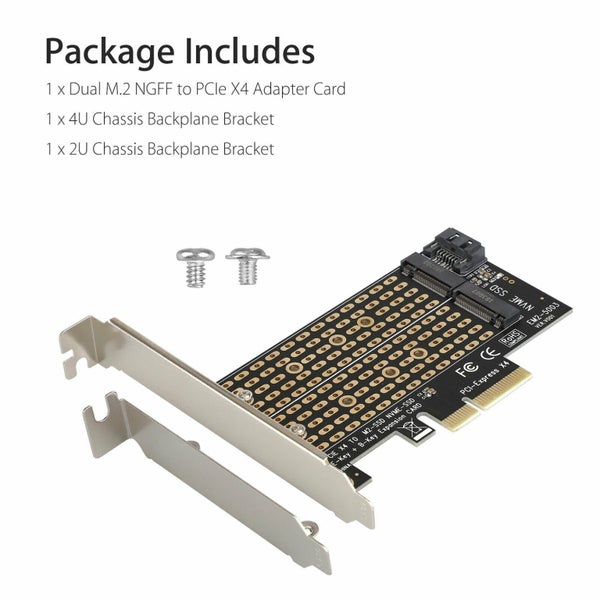

Package Includes: 1 x Dual M.2 NGFF to PCIe X4 Adapter Card 1 x 4U Chassis Backplane Bracket 1 x 2U Chassis Backplane Bracket
