Description
This is brand new antenna with one year warranty. It works with most brands chartplotters which take NMEA data such as Lowrance , Raymarine, Seiwa, Simrad and so on. Tell me your plotter model then I will give you wire diagram. Buy with confidence from GPS expert.

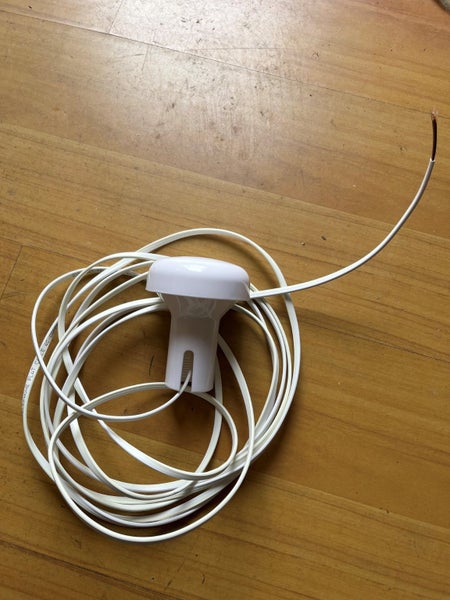

Marine Smart Antenna
High Sensitivity
Marine Smart Antenna
Specification:
- Receiver: Tracking up to 20 satellites L1, 1575.42MHz C/A code
- Chipset: SiRF III
- Antenna Type Built in Patch Antenna
- Output protocol NMEA0183.V.3.0
- DGPS WAAS, EGNOS, MSAS
- Datum WGS-84
- Voltage Range: 5V~32V
- Backup Voltage 2.0~3.6Vdc ±10%
- Max update rate 1 HZ
- Accuracy: a. Position: 10meters, 2D RMS 5meters, 2D RMS, WAAS enabled
b. Velocity: 0.1m/s c. Time: 1 us synchronized to GPS time 11. Available baud rate a. Default: GGA, GSA, GSV, RMC b. Support: VTG, GLL, ZDA c. SiRF binary and NMEA Command d. 4,800 to 57,600 bps adjustable 12. Acquisition Tiem a. Cold Start: 42 sec (average) b.Warm Start: 38 sec (average) c. Hot Start: 1 sec (average) 13. Reacquisition: 0.1 second, average 14. Dynamics a. Altitude: 18,000m (max) b. Velocity: 515m/sec (max) c. Acceleration: 4G (max)
