Description
Product Name:Solder Station & SMD Rework Model : 8786D Brand Name: YIHUA Color : Black Warranty:12 Month This is a cost-effective product.
Description

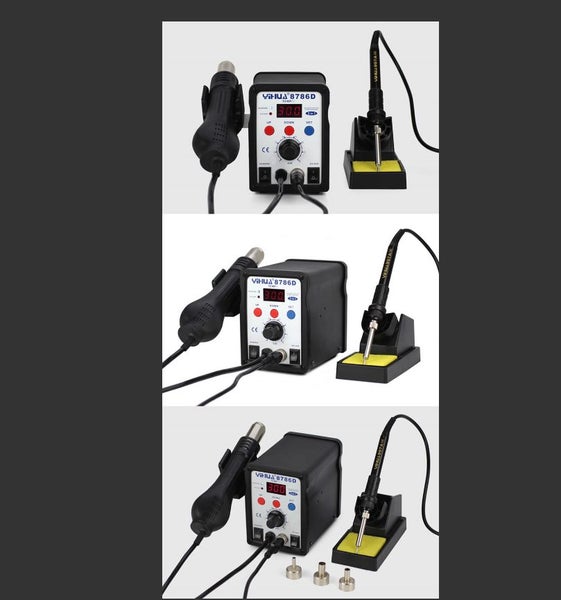

This special unit is a combination of both hot air soldering station and soldering iron, for soldering and desoldering SMD and some through hole components. The hot air gun can be used for easily removing and soldering various devices such as QFP,SOP,PLCC,SOJ,CHIPS, the soldering iron is mainly for soldering.
It has three knobs which control hot air volume, hot air temperature, and soldering iron temperature. The temperature range of hot air is from 100°c420°c , for soldering iron is from 200°c480°c .The hot air knob has 8 shifts, which provide diffrent speed and volume of air flow for diffrent use. The air flow is strong(0.3--24L/min) and stable. With two LED digital display for hot air and iron, you can easily get your desired temperatures. The machine provides stable temperature, which is not effected by the volume of air flow.

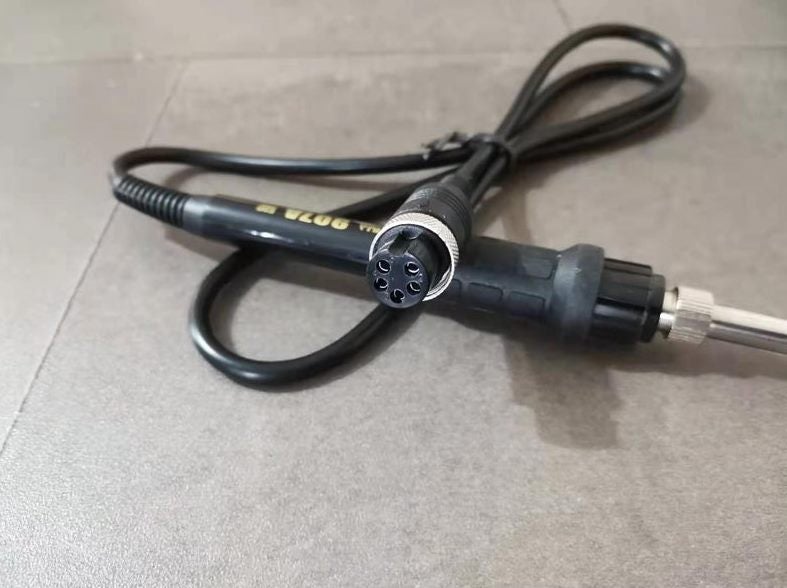

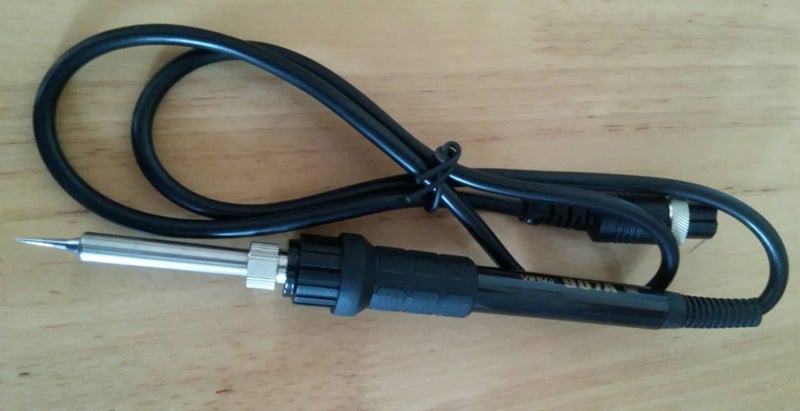

The soldering iron can be unpluged or pluged easily, ESD SAFE design provides extra safety for sensitive components, high quality ceramic heating element rises the iron temperature rapidly in 3 second.
It also has an automatic cooling system, when you switch off the hot air, the automatic cooling system begins to work, provent the heating element from overheating.
Specifications of hot air gun:
Specified voltage:230V
Consumption: 270W
Type of pump: Brushless
Air flow: 0.3- 24L/min. Adjustable
Pump power:45 W
Heater:250W metal
Hot air temp. 100°c – 420°c
Specifications of soldering iron:
Power: 60W
Output voltage:24V/AC
Temp. Range: 200°c --480°c
Bulk: 187mm * 135mm * 245mm
Packing included:
1soldering station 1soldering iron 1soldering iron stand 1holder for handle of hot air soldering head 3free Nozzles(nozzles diameter: Ø5mm, Ø8mm ,Ø10mm) More Photos:
