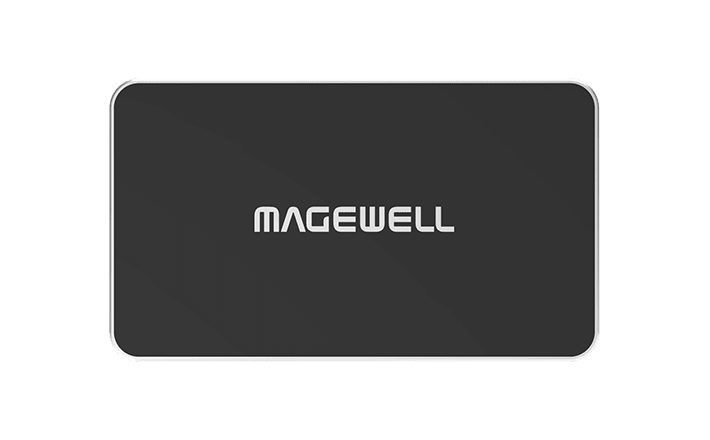

One-channel 2K capture device

• Capture HDMI + embedded audio
• Loop-through HDMI signal
• Audio input via mic
• Extract HDMI embedded audio output via headphones
• Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming Interface Specifications and Features Interface Input Interface & Loop-through Interface
• One HDMI input + embedded audio
• One HDMI loop-through
• Support input & loop-through resolution up to 4096x2160 pixels Audio Input/Output Interface

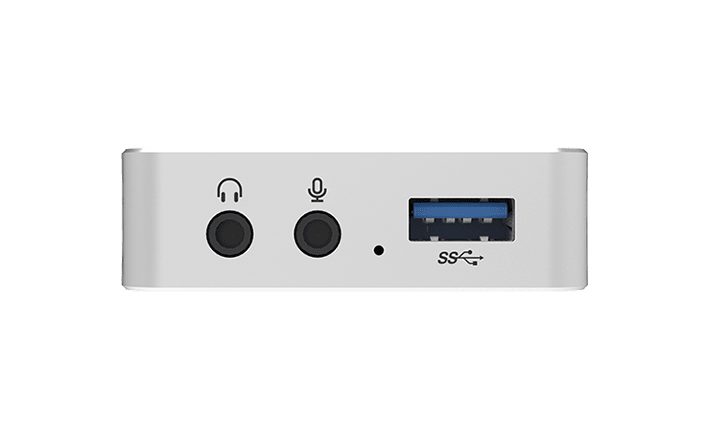

• 3.5mm audio jack for microphone/ headphones Host Interface
• USB 3.0, compatible with USB 2.0 OS
• Windows, Linux, Mac, Chrome OS Capture format
• Support capture resolutions up to 2048x2160
• Support capture frame rates up to 120fps
• Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface Included Software
• USB Capture Utility, Capture Express, etc. Compatible Software
• Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc. Input Features
• 297MHz HDMI receiver, max input & loop through video:
• 4096x2160 30fps 4:4:4/4:2:2
• 4096x2160 60fps 4:2:0
• Custom EDID
• Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
• Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
• 2-channel IEC60958 audio streams via 3.5mm microphone interface
• HDMI interfaces: HDMI 1.4, DVI-D Process and Capture Features
• Video processing pipelines with ~160M pixels/s processing bandwidth
• Capture videos up to 2048x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
• 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
• 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
• 720x576p25
• 720x480p30
• Output YUYV/UYVY/RGB24/RGB32 videos
• S...
