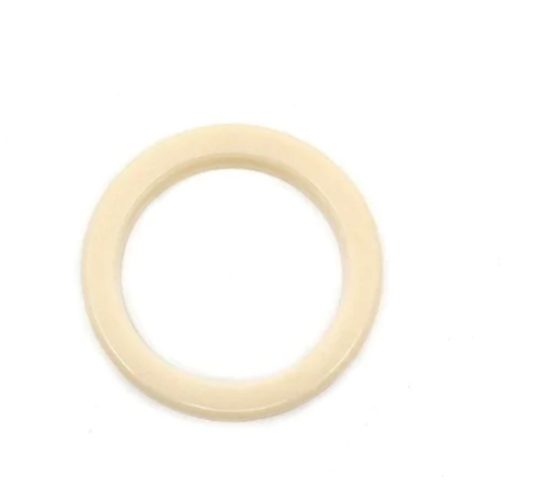

Breville Coffee Espresso Machine Ring Seal / Gasket

Dimensions: 65mm Full Diameter

50mm Inner Diameter

This is a high quality replacement seal / gasket for your Breville Espresso Machine. It is recommended to occasionally replace this product as they can get worn, moldy, or damaged over time. It is an easy replacement and a relatively inexpensive part. We have put some instructions on how to do this below.

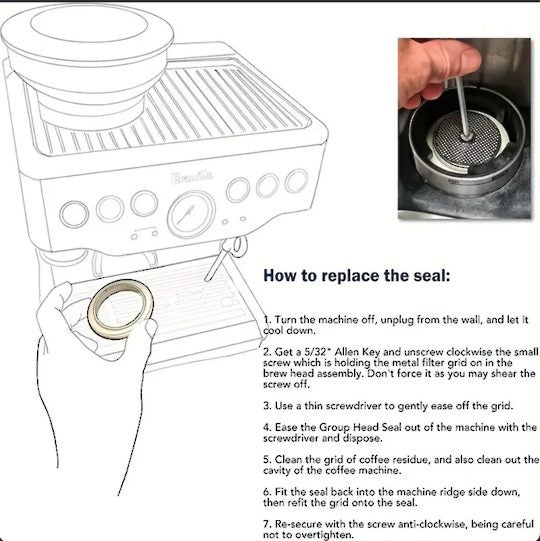

Here's a step-by-step guide on how to replace the steam ring seal on a Breville espresso coffee machine:

Step 1: Power Off, Unplug, and Remove Parts

Turn off and unplug the machine. Remove the drip tray and water tank to access the group head area.

Step 2: Remove the Old Seal

Use a flathead screwdriver or prying tool to carefully lift and remove the old steam ring seal from the group head.

Step 3: Install the New Seal

Clean the area, then press the new steam ring seal into place, ensuring IT'S seated evenly.

Step 4: Reassemble and Test

Reassemble the machine, power it on, and run a test cycle without coffee to ensure there are no leaks.

Tip: Regularly check and replace the steam ring seal as part of your machine’s maintenance to prevent leaks and ensure optimal performance.

Compatible with the following models: BES870XL, BES840XL, BES880BSS, BES870, BES810, BES860, BES840CB, BES840, BES878, BES840XL/138, BES810BSS, BES860XL, BES870XL/02.6, BES500B, BES870/A, BES881, BES878BSS, BES840XL/A, BES870BSS, BES840, BES880, BES450BSS, BES860XL/02.6, BES880BSS, BES870XL, SES880BSS, SES450BSS, SES500BSS BES810BSS Breville The Barista Touch Impress BES881 Sage SES450BSS Sage SES500BSS Sage SES880BSS Breville BES500B TINGARI Breville BES450BSS Breville BES870XL Breville BES880BSS Breville BES878BSS Breville BES870 Breville BES878 Breville BES880 Breville BES860XL/02.6, BES870XL/02.6 and BES840XL/138. Breville The Barista Express BES870XL Breville Duo-Temp Pro BES810 Breville Barista Touch BES880BSS Breville Infuser BES840XL/A Breville Bartista Express
