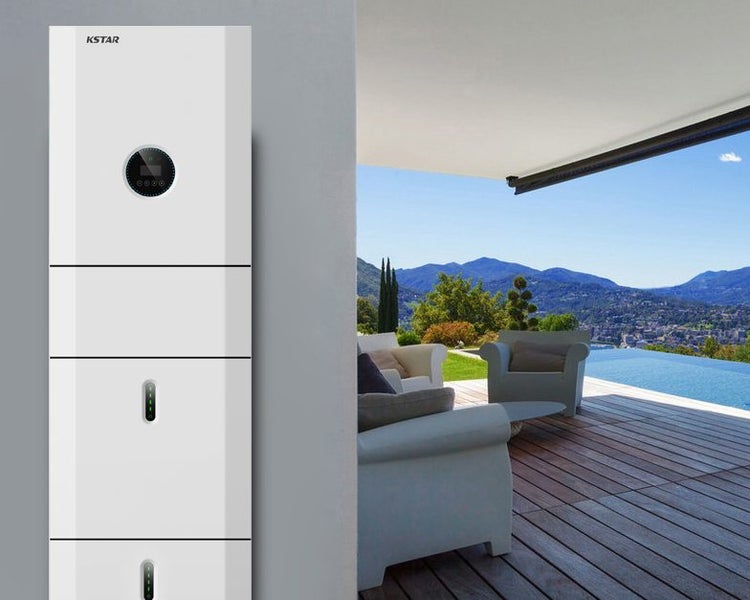

KSTAR BluE series energy storage solution is the optimal choice for residential PV+ESS application. The AC capacity is 3 phase 10KW. The energy storage capacity can be configured as 10.2KWH.

Key Features: All-In-One Design High Efficiency Easy Installation Equipped with CATL's Advanced LFP Battery Supports 20KW PV Input, 10KW Charging, and 10KW AC Output Modular Design for Easy Expansion with 5.12KWH Units 10KW 3-Phase Backup Output with Fast <20ms On/Off Grid Switching Includes EMS for Versatile Applications

Battery Model: BluE-PACK5.1 Battery type: LiFePO4 Weight: 54KG Dimensions W x H x D: 540x490x240mm IP Protection: IP65 Energy Capacity: 5.12kwh Usable Capacity: 4.6kwh Depth of Discharge (DoD): 90% Nominal Voltage: 51.2V DC Circuit Breaker: 125A Operating Voltage Range: 44.8-56.5V Cycle Life: 10000cycle

Hybrid Inverter Model: E10KT PV String Input Max. Continuous PV Input Power: 20kW Max. DC Voltage: 1100V Nominal Voltage: 720V MPPT Voltage Range: 140V-1000V MPPT Voltage Range (Full Load): 420V-850V Number of MPPT: 2 Max. Input Current Per MPPT: 15A Max. Short-circuit Current Per MPPT: 20A AC Output (Grid) Nominal AC Output Power: 10kW Max. AC Apparent Power: 11kVA Nominal AC Voltage: 400Vac AC Grid Frequency Range: 50 / 60Hz‡5Hz Nominal Output Current: 14.5A Max. Output Current: 16A Dimensions: 540x980x240mm Weight: 49kg

Package included: 2 X Kstar BluE-PACK5.1 Lifepo4 Battery 5.12KWh (10.24KWh for 2 batteries) 1 X Kstar 3 Phase Hybrid Inverter E10KT 18 X LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm) 18 X Adjustable Solar Panel Mounting Bracket Tilt Mount

Ideal Use: This system is especially suited for residential or small commercial setups requiring a reliable, high-performance single-phase energy storage solution.
