Description

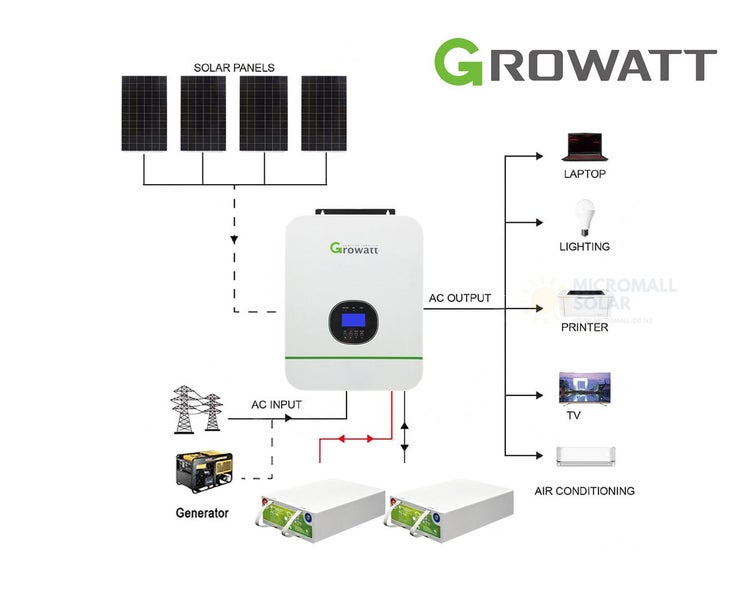

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
Package includes: 4 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm) 1 x Growatt SPF 3000TL HVM-24 Hybrid Charger Inverter 3kW 24V (2 Years Warranty) 2 x 12V 130Ah Ultra Lead Carbon Batteries (2 Years Warranty) 1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors 1 x 2-in-1 MC4 Connectors 1 x 30a PV Fuse 1 x 160v 32a PV Circuit Breaker 1 x Surge Protector 4 x Solar Panel Mounting Kits Z Brackets Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.
The Growatt SPF 3000TL HVM-24 is an off-grid inverter. It is suitable for a maximum circuit voltage of 102VDC. The inverter can be used with batteries. The integrated solar charger optimizes the charging and discharging of the battery. Priorities can be assigned, where, for example, charging from the grid can be preferred over charging from the PV installation. Monitoring will be possible when adding a separate Wi-Fi or GPRS dongle.
Technical Data: Battery type: GEL, AGM, Flooded, Lithium and user-programmable Nominal battery voltage: 24 VDC Inverter continuous output power: 3000W Max. surge power: 6000VA Output voltage range: 230VAC (-5% ~ +5%) Output wave: Pure Sine Wave Max. PV open circuit voltage: 102V Max. PV input power: 1500W Max. PV charging current: 50A Max. Utility charge current: 30A Dimensions: 400mm x 315mm x 130mm Net weight: 8.5kg
Daily Output 10KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
This inverter fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance (latest NZ 2015 spec requirements).
