Pack of 1 for Petrol Car Fuel Injector Cleaner Cleaning Tool Kit w/Carrying Case

Features: The injector clean kits include many different kinds of adapters, covering almost all for EU, for Asia, for USA cars and light trucks(petrol and diesel). Non dismantle injector throttle and fuel system. The system is not only characteristic of high and low pressure cleaning function. At the same time put the function of the whole combustion chamber fuel system of several functions in one product, such as cleaning throttle valve and the fuel nozzle.

Steps to Check fuel injection model, throttle or EFI: Find out the fuel return hose, disconnect it and plug it with a suitable adaptor; Find out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper adaptor; Connect the outlet and return hose of the fuel tank, and open the tank cover; if there is not return hose, please move the fuse of the fuel pump so that the pump will not work; Charge the cleaning fluid into the tank of the cleaner; Connect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI; Check all connect point to make sure there is not leakage; Start the engine to clean the fuel system. To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI. The way to identify the inlet and return hose: Generally, inlet hose is bigger, return hose is smaller; There is always a filter connected in the inlet hose side, and a buffer in the return side; There is an arrow on the hose to show the fuel flow direction.

Specifications: Material: Metal, Rubber Pressure: 0-120PSI Tank: 600ml Hose Length: 103cm/40.55" Hose Adapter Inner Diameter: 7mm/0.28" Guage Diameter: 3.4cm/1.34" Air Supply Connector Diameter: 7mm/0.28" Outer Hose Length: 67cm/26.38" Outer Hose Diameter: 5mm/0.2"(ID) Cutter Hose Length: 17.5cm/6.89" Cutter Hose Thread Size: M8x1.25 Adapter Kits Thread Size: M8x1.25 Storage Bottle Size: 22x7.5cm/8.66"x2.95"(H*D)

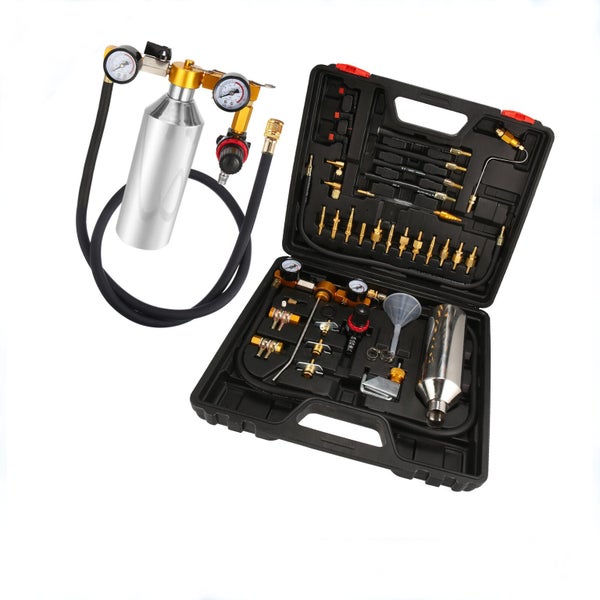

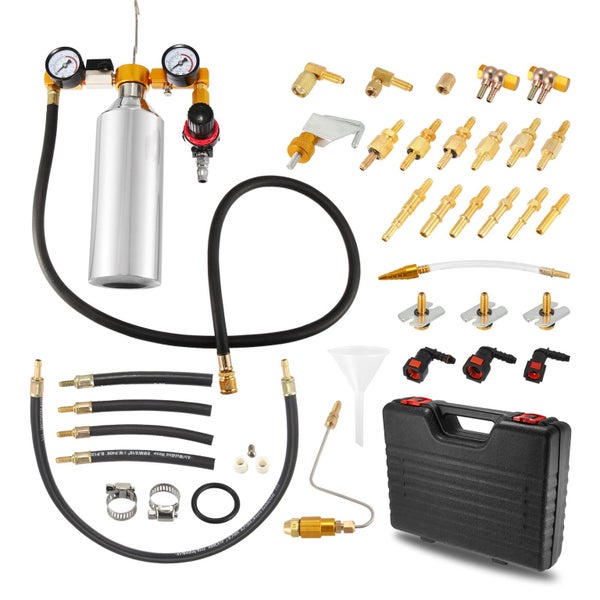

Package Included: 1 x Fuel Injector Cleaner 1 x Adapter Kits 1 x Suitcase
