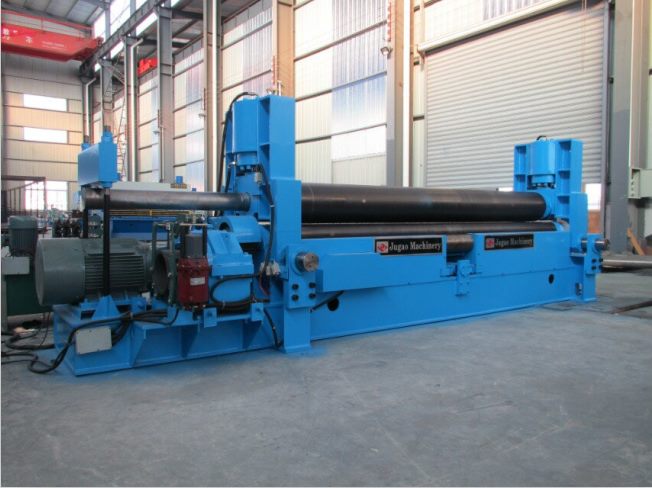

Model W11S-10×3000
Style Hydraulic Top Roll adjustable (with pre-bending)
Pressure on top roll Ton 60
Max. width of rolling plate mm 2500
Working length of the rolls mm 3000
Max. pre-bending capacity mm T8×B2500×?m­in637.5(?s=245Mpa)
Max. rolling capacity mm T10×B2500×?­min637.5(?s=245Mpa)
Flat end at full width & thickness of the plate mm =(2-2.5)× thickness of the plate
Diameter of top roll mm ?255
Diameter of lower rolls mm ?145
Center distance between
two lower rolls mm 245
Rolling speed m/min Appro.4
Pressurization speed
for top roll Mm/min Appro.120
Qty of support rolls Pcs 4 (1 group)
Main motor power KW 7.5
Hydraulic motor power KW 3
Moving motor power KW 1.5
Dimension (LXWXH) Mm Appro.400*2000*2000
Weight Ton Appro.8
This can do Cones with a added attachment on the base frame

12 MONTH WARRANTY
We take a deposit of 50% then another 30% before shipping
balance at your choice of port in NZ.
45 day to supply
