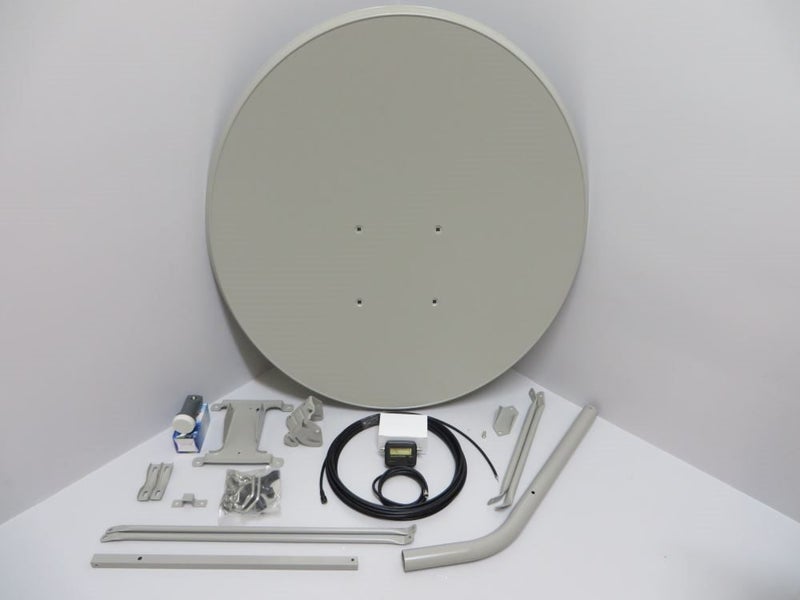

Sat Dish DIY kit includes
- Sat dish 1m x 90cm
- LNB (metal case LNB available for extra $4)
- 10 metres RG6 coax cable
- F connectors and weatherproof boot
- Satellite Finder
- Flylead quality F to F type

Cable is available in black or white - if you do not specify colour, I will send black. I will fit the connector and weatherproof boot for the LNB end and prepare the other end for you to fit after you have run the cable.

Dish Details:
Heavy gauge steel reflector 0.7mm -with coatings about 0.9mm (some dishes use as low as 0.3mm)
Diameter 100cm x 90cm Ku band
1 x curved wall mount
2 x stays (450mm long)
1 x LNB holder (fits standard 40mm LNB)
Hardware
Assembly Instructions
Galvanised treated steel
Polyester powder spray plastics finish
Light grey
No Logos

LNB Details
Ku Band Digital LNB
Suited for Optus D1, C1, D2 etc..
Freeview / Sky / Ethnic and religious channels etc...
Input frequency 11.7-12.75Ghz
Output Frequency 950-2000Mhz
L.O. Freq 10.750 (same as sky use)
Polarisation: H (16-20V) or V (10-14.5V) Single Output
Conversion Gain 65dB
DC Power 10-20V 125mA

Sat Meter Details
Top Quality
Polarity Indicator H/V
22Khz Indicator
Tone
Bandwidth: 950-2150MHz
Gain: 10dB
Input Level: -25 to -75dBm
Input/Output impedance: 75 Ohms
Power Supply: 13-18VDC

Please note - the wall mount supplied will not cater for all installation options. See my range of hot dip galv satellite mounts
- all LNBs are tested prior to despatch. Only connect F plug finger tight. Use of tools may damage LNB
- technical assistance may be required
- for Installations in corrosive locations, check out my azure shine dish auctions
- LNB outer case may differ from picture depending on stock

Currently running low on 10750 LNBs. If I have run out at the time of your order, I will supply the 11300 metal case LNBs for no extra charge. Please click here to ask a question
