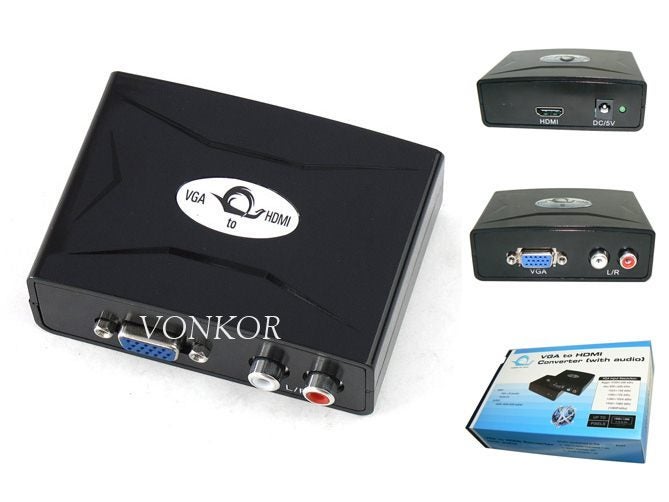

This converter box converts PC VGA and audio to HDMI, allowing connection of PC to 1080P HDTV. It supports multiple resolution up to 1920 x 1200 @60HZ. It is with high compatibility with wide brands of PCs and HDTVs.

The converter box offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:

One VGA+R/L input signal convert to one HDMI 1.1 sink devices
Support video input : VGA analog
Support audio input : R/L analog
HDMI output : Support up to 1920x1200, same format as input
HDCP 1.1 protocol compliant
Support CEC
LED indication : when source or sink is working, LED relative to is light
Support output up to 20metres AWG26 cable length
No loss of quality
Installs in minutes
DC5V/1A power supply

Specifications:

VGA Input - ..- - - - - - - - - Support up to SXGA/SGA/UGA(50/60/75HZ)
Audio Input - ..- - - - - - - - - R/L Analog
HDMI resolution - ..- - - - - - - - - Support up to 1280x1024, same format as input
Max transmission bandwidth - ..- - - - - - - - - 5.1Gbps
Input Video signal - ..- - - - - - - - - 0.5~1.5Volts p-p
Output DDC signal - ..- - - - - - - - - 5Volts p-p (TTL)
Output cable distance - ..- - - - - - - - - =20m AWG26 HDMI 1.3 standard cable
Max working current - ..- - - - - - - - - 600mA
Power adapter format - ..- - - - - - - - - Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range - ..- - - - - - - - - (-15 to +55)
Operating Humidity range - ..- - - - - - - - - 5 to 90%RH (No Condensation)
Dimension (L x W x H) - ..- - - - - - - - - 90x70x33(mm)

Operating and Connecting:

1. Connect VGA+R/L from VGA source devices into Converter input.
2. Connect one cable from HDMI1.3 display (monitor or projector) into the Converter outputs.
3. Connect 5V power supply to the VGA CHD0101 Converter.

Package Included:

1 x VGA to HDMI Converter Adapter Box (FY1316)
1 x User Manual
1 x Power Adapter Please click here to ask a question
