Convert your mountain bike or handcycle to Electrical Bike!

Feature Patented Smart torque technology used. Automatically adjusts assistant power according to your pedaling force based on the assist mode selected

• ideal for people who require knee rehabilitation.
• Saves the battery time

Your bike or handcycle must meet the following specifications, please read carefully otherwise we don't refund the round-trip shipping fee.

• 26" rear wheel without Cassette (our Kit provides cassette hub for 7 ~ 10 sprocket cassette)
• water bottle location ready, 378L (Bottom)/260L (Top) x 78W x 99H mm space require for Battery.
• The min. distance between two of your rear wheel forks is 135mm. (Note: the width of the wheel motor hub is 142mm, you need to pull the rear fork a bit wider when placing the rear wheel in)
• The inner distance between the brake caliper and brake disc should be 11 ~ 13mm (See last photo). Please check if your disc brake caliper's position is suitable.
• The rear fork dropouts slot is 11mm required

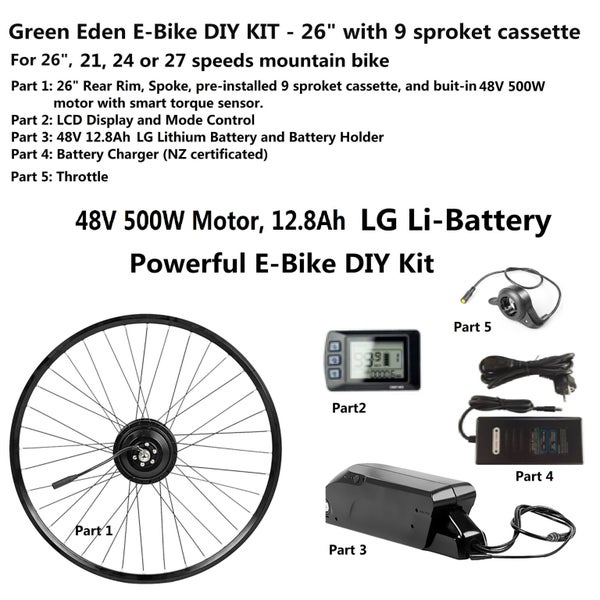

The DIY Kit contains five parts: Part 1: 26" Rear Wheel including Rear Rim, Spoke, cassette hub and built-in powerful 48V/500W brushless geared Motor with smart torque transducer. Part 2: LCD Display and mode control Part 3: 48V/12.8Ah LG Lithium Battery with built-in intelligent controller (Patented product), come with Battery Holder Part 4: Battery Charger Part 5: Throttle

Specifications:

• Brand Name: Green Eden OEM, designed by Green Eden, made in China
• Motor: 48Vdc 500W

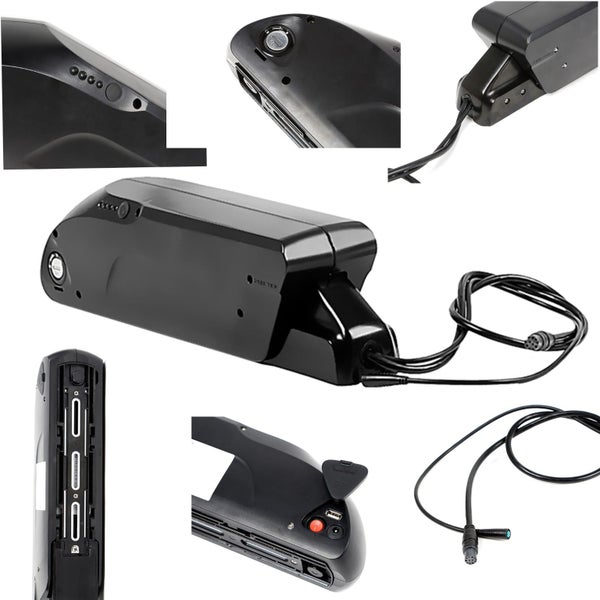

• Battery: 48V/12.8Ah Lithium Battery, powerful LG Battery cells inside
• Range: 45-60 km at mode 1 ~ 3 (conditions depended)
• Pedaling assistant and throttle
• Max. speed: up to 35 km/h

1 year return to base warranty

We convert your bike to electric bike at $60 or more (Depended)

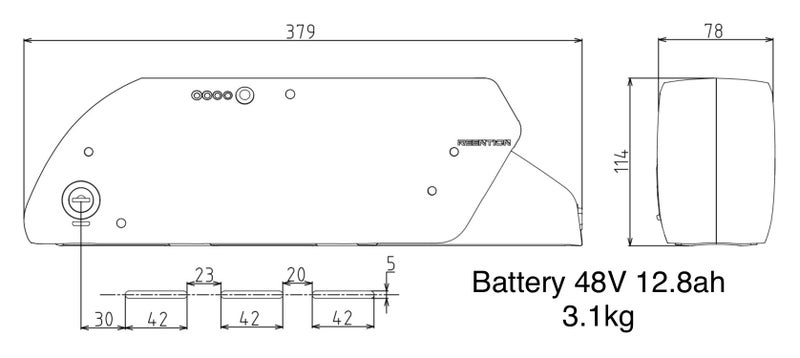

Upgrade to 48V 16Ah or 768Wh (LG 18650 cells), just $100 extra. Dimensions: 377L x 132H x 78W mm
