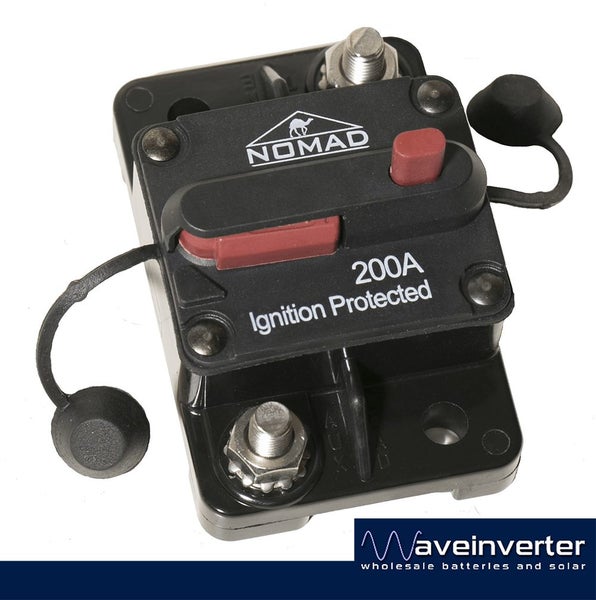

NOMAD 200A DC MARINE CIRCUIT BREAKER SINGLE POLE

Hi, my name is David from waveinverter your complete electrical systems store backed by degree qualified engineers and service centre, We are based in Henderson, Auckland and I want to give you a warm welcome to my listing.

Do please ask me any questions about any of our products.

Great reviews gwm06 July 2016 Great trade. Have traded with this seller before. Good service, good product

.

The NMCB range provides robust and accurate circuit protection and was created to be safe aboard gasoline powered boats and vehicles, meets SAE J1171 external ignition protection requirements.

Suitable to use in non clean and non dry environments

Combines switching and circuit protection into a single device

Trip free, should a short circuit or tripping condition occur, the contacts are forced apart and the breaker cannot be held closed by means of the lever.

This single pole thermal type breaker is ideal for auxiliary and accessory circuits, trucks, buses, RVs and marine applications, battery chargers and DC audio systems.

·Install in seconds, just bolt on 2 cables on and it is done ·No more fuses to change ·Easy to operate with manual reset arm -Can be used as a battery on/off switch. ·Self-Testing & Manual Override ·Can be mounted on panel or firewall. Has mounting bracket with 2 bolt holes. ·Water Resistant ·Robust Terminals 1/4? (accepts M6 Ring Terminal and larger) ·Amp rating: 200A ·Designed for DC voltages 12v/24v/48v ·Size: 72.5mm x 48mm x 44.2mm ·Weight 0.25kg

Comes with 12 month RTB Warranty

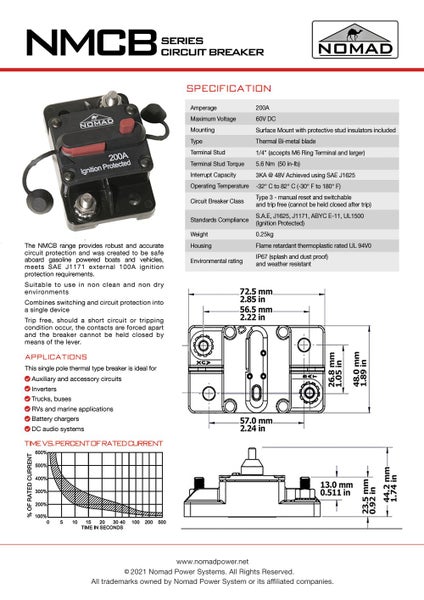

Manufacturers Specification sheet is here: https://www.nomadpower.net/media/NMCB-200.pdf
