NEW Door Lock Motor 4 Honda / Subaru / Toyota etc

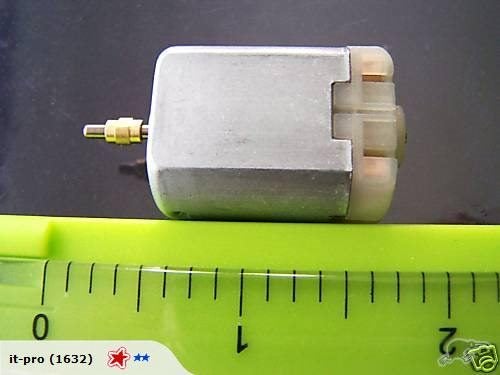

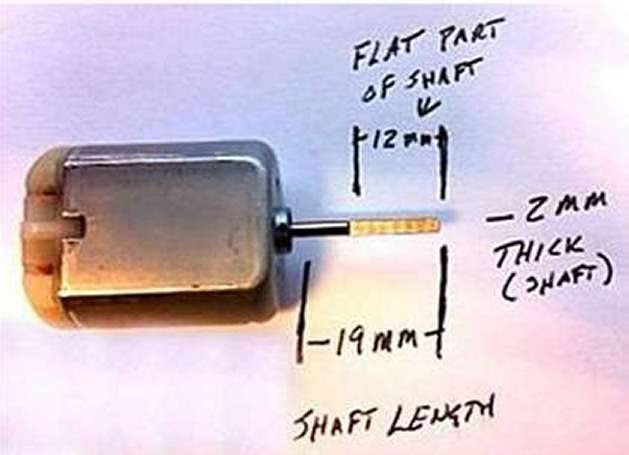

1 x New Replacement 12v FC-280PC-22125 Electric Motor with 19mm shaft.

This motor here is PERFECT to fit the Honda Accord EURO 2003-2010 CL7 models and 2004 upwards Subaru Legacy etc.

Needing a replacement of this model motor is a very common issue. Our motors have fixed issues in: Lexus IS300, LS400, GS300, GS400, GS430, RX300, Acura T1, E1, Ford Laser, Fairmont / Falcon AU, AUII, AUIII Toyota Landcruiser, Harrier, Tacoma, Subaru Legacy Sienna, Prius, Corolla, 4Runner, Honda Torneo CF4, SiR / CL1 Euro-R, Accord Euro R / Accord EuroR, CRV, Civic, Odyssey, Mazda MPV, Familia, Protege Renault Clio II & many more we've not yet listed.

Who wants to spend $160-450 on a new door lock actuator when it just needs the motor replacing in most cases :)

The motor to replace is a Mabuchi 12v DC Motor. Commonly referred to as FC-280PC/SC.

Its a 17mm flat motor & is widely used in retracable rearview mirror, steering lock actuator mechanisms etc

Description: DC Carbon Brush Motor, 12V, 2mm shaft, motor. Replacement motor for many door lock motors not just the brands mentioned above.

Common Uses: Retractable Rearview Mirror, Central Locking, Door Lock Actuator, Steering Lock

Specs: 24.2MM, 12V, 13100RPM, 0.11A ,BOTTOM CONNECTION 11480RPM MAX ,0.78A , 48.5G-CM ,5.71W STALL TORQUE 393 G-CM, CURRENT 5.56A

Part number: FC 280PC 22125 Also replaces the similar KF243G-101 motor.

We can list the FC-280PT-22125 which is the same but has the Brass Tip on end. Though you can remove the brass tip & swap it over between the motors if your application needs the brass tip on the end.

Upto 4 can be sent for the same courier cost :)

Note: If you'd like the motor fitted in your Actuator, then this is a service we can offer for a charge we're located in Tauranga / Mt Maunganui near Bayfair. If you're after other motors etc we don't have listed just let us know as we can likely source for you.
