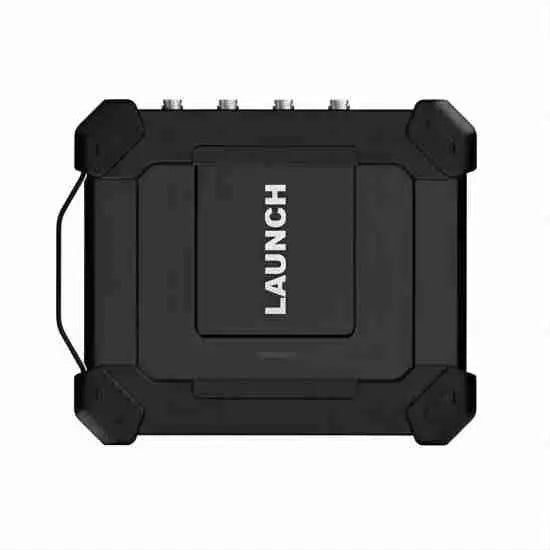

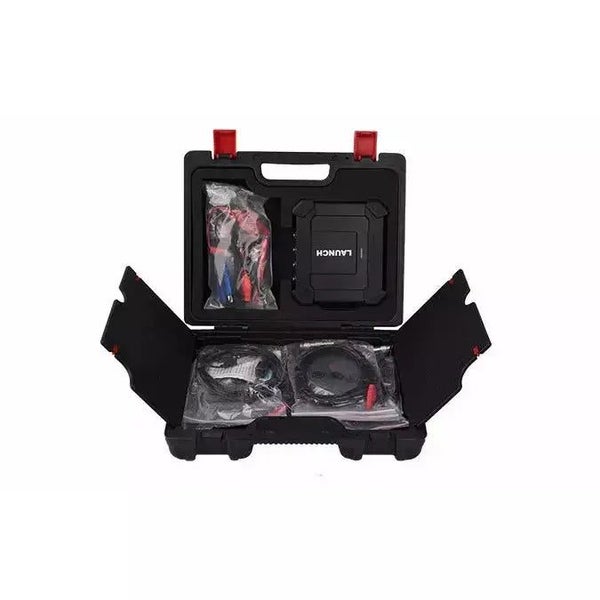

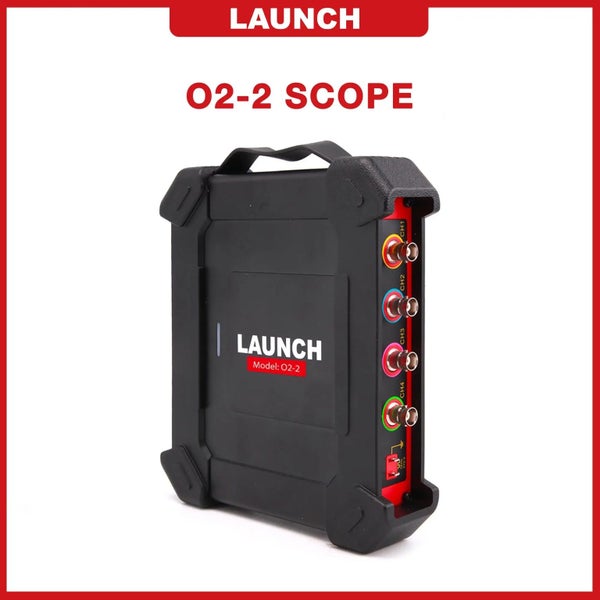

Launch O2-2 Scope Box Car 4 Channel Oscilloscope

LAUNCH O2-2 SCOPE BOX CAR 4 CHANNEL OSCILLOSCOPE ADD-ON MODULE FOR LAUNCH DIAGNOSTIC SCAN TOOLS

• Features the ability to record and playback high-resolution waveform data for future analysis. One key enable function* Allows the user to capture a particular waveform which makes the process 70% more efficient as compared to other scopes.* Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.* Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process* contributes to 90% efficiency.* Buffer memory up to 50M.* Use the zoom-in/out feature to review precise details.* Customizable personal system settings that can be saved as configuration files for viewing.* The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.* Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.* Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.* Multi language user interface.USB Sync Data Transfer to external devices such as laptop, tablet, etc....

NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.

Specification

Channels

4

Bandwidth

100MHz

Rising Time

3.5ns (typical)

Accuracy

3%

Input Impedance

1MOhm1.5%

Input Type

Single-ended, BNC connector

Input Coupling

DC AC

Overload Protection

200V on single input

Timebase Ranges

50ns1ks (1 channel), 100ns1ks (2 channels), 200ns~1ks (4 channels)

Vertical Resolution

8bits

Buffer Memory

50M (for 4 channels)

Power Interface

USB port, DC IN port

Data Exchange Via

USB

Trigger Mode

Normal, Auto and Single SEQ

Advanced Triggers

Edge, Pulse width
