BAT TECH Multi Meter AC DC Current Volt Capacitance True RMS [ADM92CL]

MID-WINTER SPECIAL $ 129.95 to $ 89.95 incl GST

BAT TECH Multi Meter AC / DC Current Volt Capacitance + more, True RMS [BSIDE ADM92CL]

FUNCTIONS:

voltage

current

resistance

capacitance

frequency

temperature

continuity

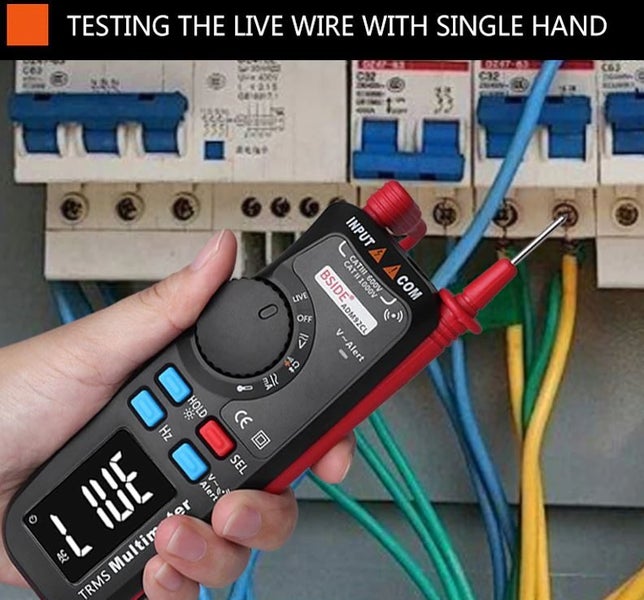

LIVE wire check

diode

digital multi meter

single slot for test lead

TRMS True RMS single mode measurement / automatic range

Max display value: 6000 Counts

LCD display with backlight for clear reading (colour LCD display)

supports one-handed switching of all test functions

activate v~alert (NCV) at any function

data hold

low battery indication functions

auto power off

overload protection on all ranges

added back hooks, convenient to carry

SPECIFICATIONS:

AC current: 60 Ma / 200 mA ± (1.0%+3)

DC current: 60 mA / 200 mA ± (0.8%+3)

AC voltage: 6V / 60 V ± (0.8%+3); 600 V / 750 V ± (1.0%+10)

DC voltage: 6V / 60 V / 600 V / 1000 V ± (0.5%+3)

Resistance: 600 O / 6 kO / 60 kO / 600 kO / 6 MO ± (0.8%+3); 60 MO ± (1.2%+30)

Capacitance: 6 nF ± (4.0%+10); 60 nF/ 600 nF / 6 µF / 60 µF / 600 µF / 6 mF ± (4.0%+5)

Temperature: -20 ? ~ 1000 ? / -4? ~ 1832 ? ± (1.0%+3)

Continuity: If the resistance is less than 50 O, the continuity beeper sounds

Type of fuse: recoverable fuse

Power: 1.5 V (AAA) * 2 (not included)

Storage temperature: -10 ? ~ 60 ?

Working temperature: 0 ? ~ 40 ?

Size: 139.5 * 49.5 * 24.5 mm

KIT INCLUDES:

1 * TRMS multi meter main body ADM92CL

1 * CAT III 1000 V 10 Amp test leads – probe type

1 * thermocouple temperature probe

1 * cover bag

1 * user manual

1 * carton box

Please see our other listings for a wide range of automotive, diagnostic, tools and other equipment

Images are representative
