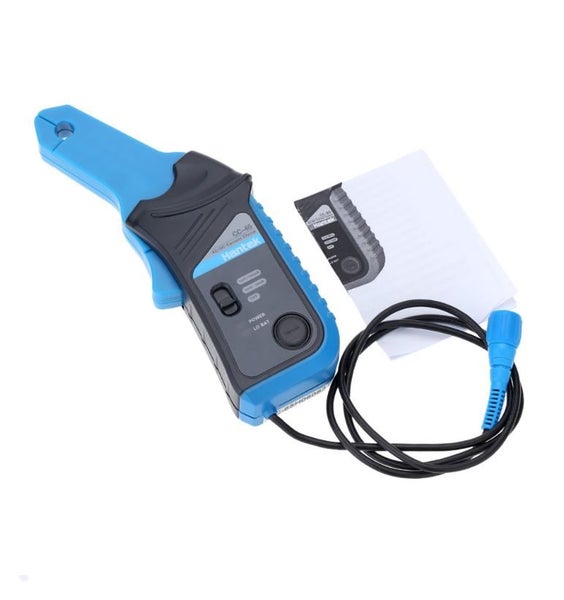

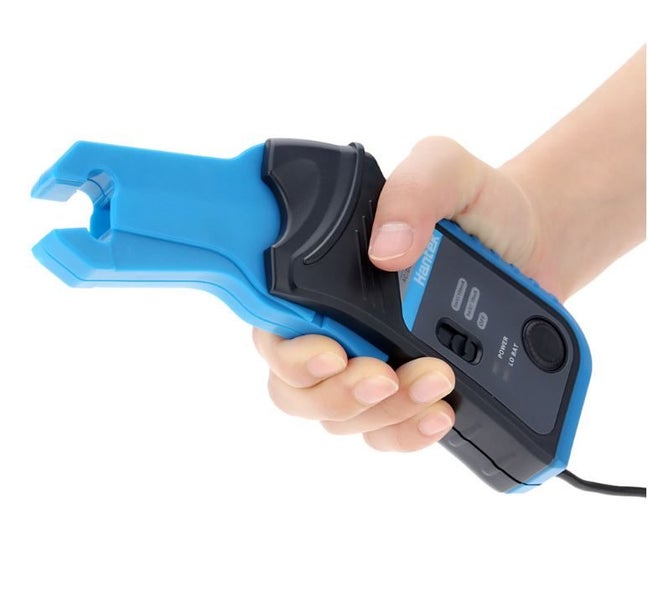

OSCILLOSCOPE 65 Amp AC / DC Current Clamp Automotive Diagnostic System [CC 65]

OSCILLOSCOPE 65 Amp AC / DC Current Clamp Automotive Diagnostic System [CC-65]

AC / DC Current Clamp, 20 kHz Bandwidth, 1 Mv / 10 mA, 65 A; It is a transducer which allows your multi-meter to measure current data and enable your oscilloscope to measure the current wave forms. Supplied with coil cable with BNC plug

FEATURE

AC / DC frequency range: Up to 20 kHz

Effective Measurement Range: 20 mA to 65 A DC

Its current transducer is composed by perm-alloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connected to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connected to a multi-meter by banana type connector, you can obtain the current data.

APPLICATION

Power circuit measurement and malfunction analysis

Motor drive of frequency converter (or other electronics) measurement

Power electronics equipment/s measurement

Please see our other listings for a comprehensive range of AUTOMOTIVE DIAGNOSTIC SCAN TOOL and OTHER EQUIPMENT

Some stock in transit, please ask

Images are representative
