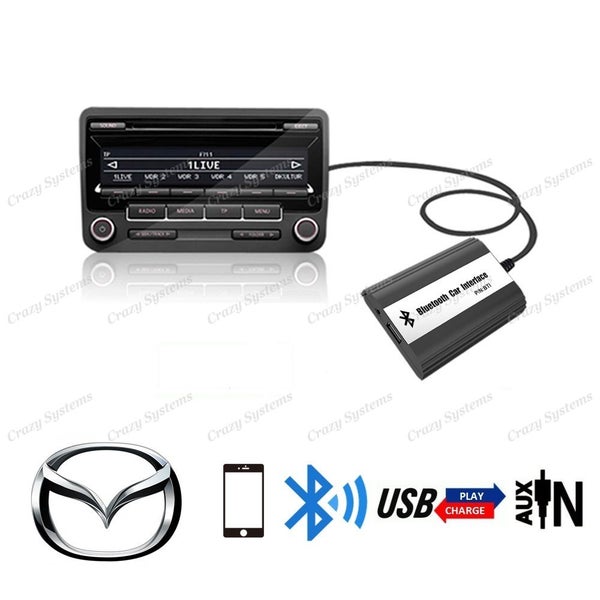

DrivePro Mazda/Ford Bluetooth Usb Aux Integration Car Kit

Features:

• Plug & Play makes it easy for anyone to connect
• Connects via the CD changer port in your factory fitted radio meaning high quality audio (See note 1)
• Built-in Monster Bluetooth 4.0 chip producing High Quality Sound

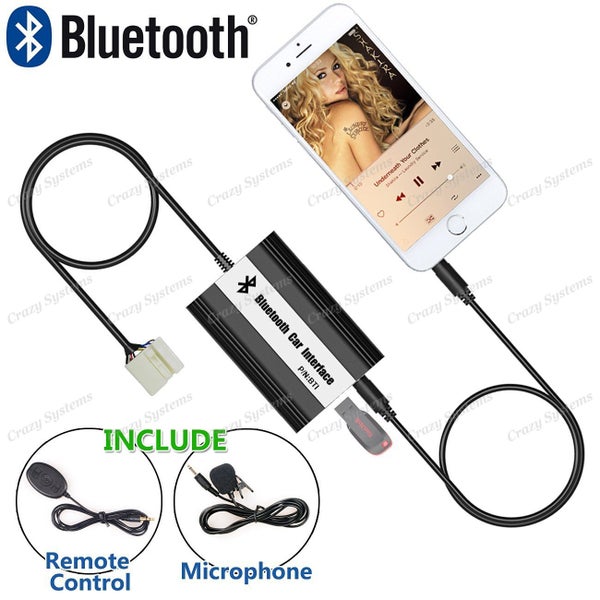

• Control your Bluetooth Audio streaming and Bluetooth Phone functions via the provided remote
• External microphone for Crystal Clear audio during phone calls
• Wired remote for easier control
• Supports audio control via factory steering and radio buttons (See note 2)
• Has inbuilt USB and AUX connectivity for even more functionality
• USB supports charging via the 1Amp output (See note 3)

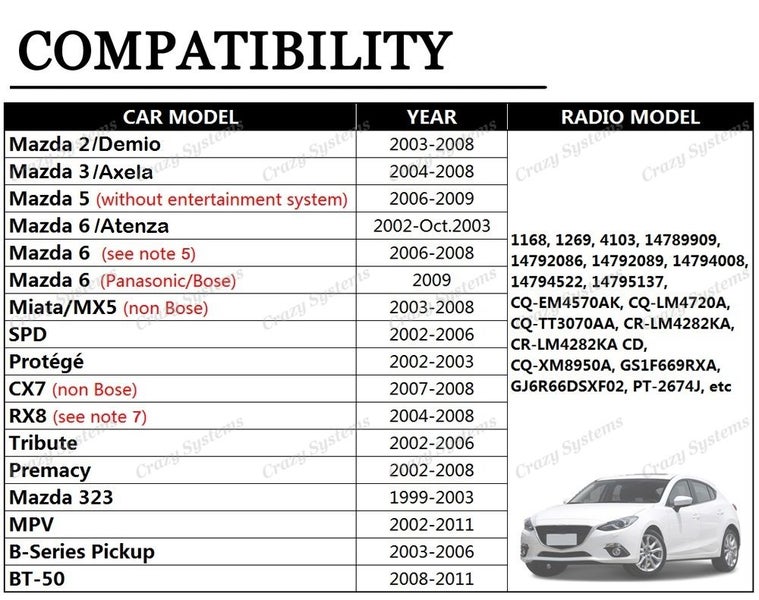

Work with the following (picture for detailed compatibility list): 2 / Demio 3 / Axela 5 / Premacy (note 6) 6 / Atenza (note 5) Mx5 / Miata SPD Cx7 (note 6) Rx8 (note 7) Tribute MpV (note 6) Mazda 323 BT-50

Note:

1. Some vehicles will already be using the CDC port for other inputs. In this case a Y Harness must be used, and we also have these available.
2. Not all vehicles will support this feature, in which instance the provided wired remote can be used.
3. USB only supports audio via flash drives. Other devices can use this USB port for charging.
4. Supports factory Amplified System
5. For some Mazda 6 produced between 2003 and 2005. The factory headunit requires a small modification to the circuit board in order to enable the use of the auxiliary/satellite radio port. For info on this modification, please see: https://gromaudio.com/docs/maz_L716_E.htm
6. For some of these vehicles which are Jap imported, you would need to use a Toyota Integration Kit, as the factory radios are Toyota Manufactured.
7. The factory headunit's firmware revision must be 9.55 or greater. The unit will not work on earlier firmware revisions or with 9.81 or 10.01. To check, tune to radio (FM) mode, then press and hold "TEXT." Then, also press and hold "1" at the same time for a few more seconds. The LCD should then report your firmware version.
