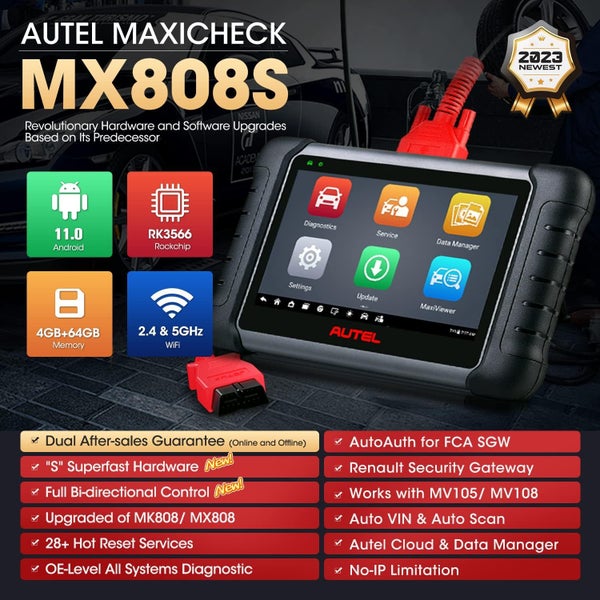

AUTEL MX808S Diagnostic Scan Tool OBD1 OBD2 Cars / Light Commercial Vhicles

LATEST AUTEL MX808S VERSION - N.Z version includes Ford AU + Holden AU software

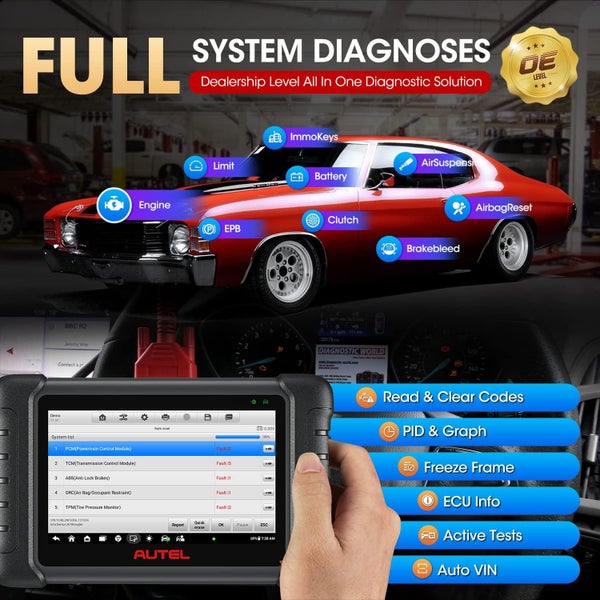

Covers all available and supported systems i.e.,

ENG engine TRANS transmission ABS anti-lock / skid brake system SRS safety restraint system [Air Bags] POWERTRAIN SYSTEM - Read / Test / Clear trouble codes all modules BODY SYSTEM - Read / Test / Clear trouble codes all modules CHASSIS SYSTEM - Read / Test / Clear trouble codes all modules INFO & COMMUNICATION - Read / Test / Clear trouble codes all modules Auto VIN Detection Auto Scan all major systems Live Data to test individual systems Communicate with door modules, body controllers, electronic modules

Support all OBDII protocols and 10 test modes including Freeze Frame, Enhanced Mode 6, Vehicle Info, I/M Readiness, On-Board Monitor and Component Tests

Graph, record and playback freeze frame data

BI-DIRECTIONAL

The MX808S now offers bi-directional controls [where supported by the vehicle system ECM/ECU] - similar to capability consider the DS808, MS906, MS906 BT, MaxiSys Elite [and more ... see our other AUTEL listings]

SERVICE FUNCTIONS

The MaxiDiag MX808S provides the following functions for most modern vehicles:

1. Oil Reset Service
2. EPB Service (Electronic Parking Brake)
3. BMS (Battery Management System)
4. SAS Service (Steering Angle Sensor)
5. DPF Service (Diesel Particulate Filter)
6. TPMS Service (Tire Pressure Monitor System)
7. IMMO Service (Immobilizer)
8. Brake Bleed
9. Injector
10. Throttle
11. WIN DR ROOF
12. Seats

... AND MORE [refer advert images]

Two [2] Years free updates from AUTEL NZ OFFICIAL WEBSITE. All updates are performed on the tool via the update App. Approx. $ 120 USD for updates [after first free period]. Tool continues to function if not updated after free period

INCLUDED

1 * MaxiCheck MX808S Android-based tablet

1 * Diagnostic connector cable

1 * Blow moulded hard-case

1 * Quick Reference Guide

1 * Mini USB cable

1 * Manual
