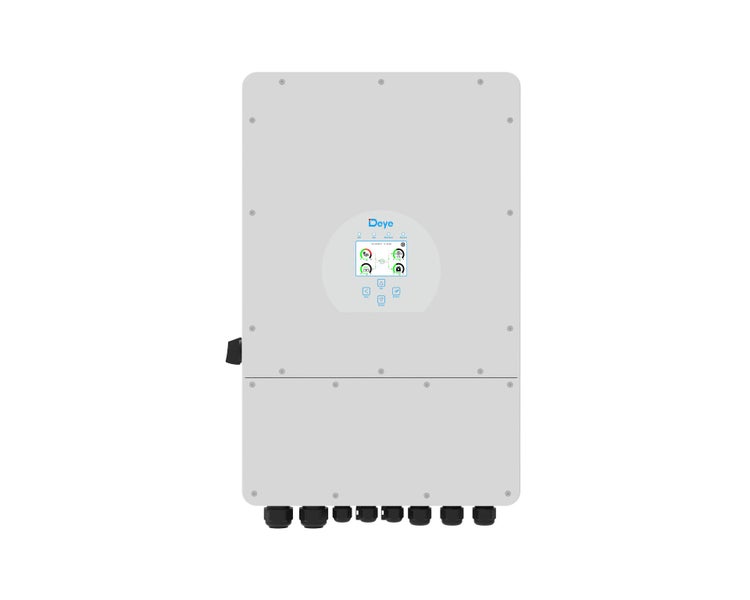

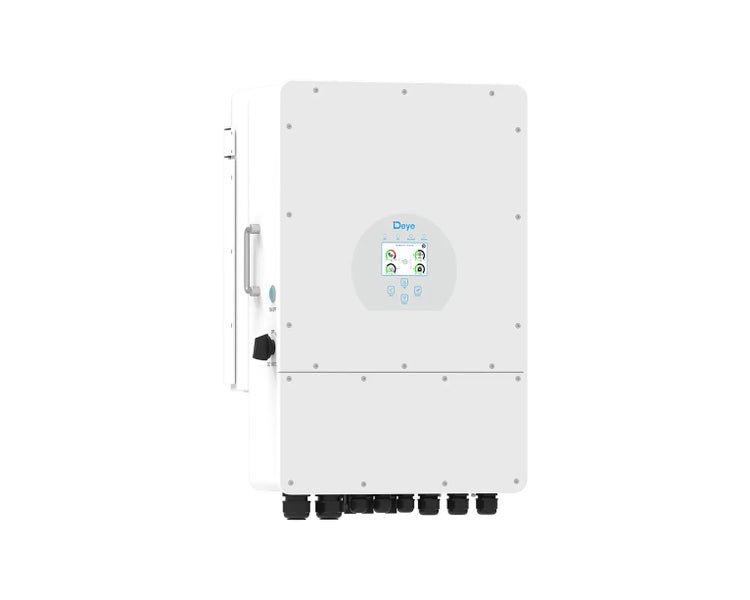

Deye 8KW Three Phase Hybrid Inverter 2 MPPT SUN-8K-SG04LP3-AU

Vector Approved Inverter DEYE New Zealand Distributor - Micromall Solar 10-Year Manufacturer Warranty

SUN-8K-SG04LP3-AU | 8kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported Higher yields / Safe & Reliable / Smart / User-friendly

Model: SUN-8K-SG04LP3-AU

Battery Input Data Battery Type: Lead-acid or Lithium-ion Battery Voltage Range (V): 40-60 Max. Charging Current (A): 190 Max. Discharging Current (A): 190 Charging Curve: 3 Stages / Equalization Charging Strategy for Li-Ion Battery: Self-adaption to BMS Number of Battery Input: 1

PV String Input Data Max. DC Input Power (W): 12000 Rated PV Input Voltage (V): 800 Start-up Voltage (V): 160 MPPT Voltage Range (V): 200-650 Rated DC Input Voltage(V): 550 Max. Operating PV Input Current (A): 13+13 Max. Input Short-Circuit Current (A): 19.5+19.5 No. of MPP Trackers/Strings MPP Tracker: 2/1+1

AC Output Data Rated AC Output Active Power (W): 8000 Max AC Output Active Power (W): 8000 AC Output Rated Current (A): 11.6 Max. AC Output Current (A): 11.6 Max. Continuous AC Passthrough (A):45 Peak Power (off grid): 2 time of rated power, 10 S

Efficiency Max. Efficiency: 97.60% Euro Efficiency: 97.0% MPPT Efficiency: 99.90%

General Data Weight (kg): 38 Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets) Protection Degree: IP65

Professional installation and service support. Dedicated communication with battery service assistance.
