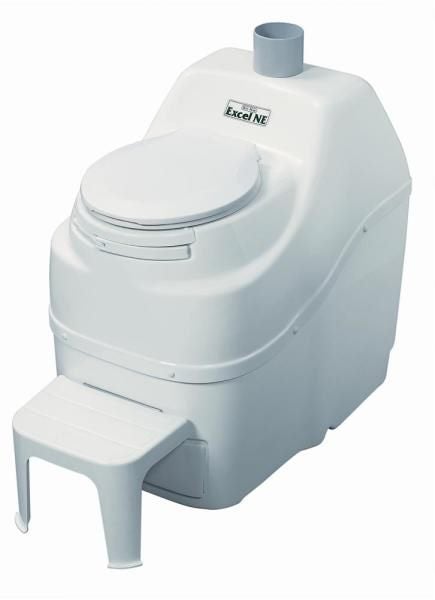

Because the Excel NE model requires no fan or heater, it is perfect for those who have no access to 240vAC power, or even a 12-volt power supply. The clever design utilizes a diffusor at the top of the unit which draws away any odour from the toilet in much the same way that a chimney draws smoke from a fire.

The systems pipe should be installed in a straight vertical line in order to optimize airflow and sit at least 600 - 1000mm above the roof.

If the toilet is to be used full time in a home, if there are bends in the pipe, or if the location of the toilet is especially predisposed to downdrafts, it is recommended that an optional 12v, 1.9watt fan be installed to help optimize performance and reduce the likelihood of any odour. If required, this 12v fan can easily be powered through a simple solar set-up. Waterless Composting Toilets NZ offers cost-effective solar solutions to complement this model if required.

As this system has no heating pads, the included drainpipe must be installed to help the system cope with any excess moisture build-up in the chamber and ensure that the unit is still able to function at its optimum level.

CAPACITY: Residential/Continuous (Adults/Families) 2 adults or families of 3 Seasonal/Vacation (Adults/Families) 5 adults or families of 7 ELECTRICAL RATING:12 or 24 volt optional DIMENSIONS:711mm x 902mm x 914mm FLOORSPACE REQUIRED:800mm x 572mm x 851mm

Capacity Listed capacities refer to the number of people, on average, using the unit per day. Do not pick a unit that is below your capacity. Residential/Continuous (Adults/Families) 2 adults or families of 3
