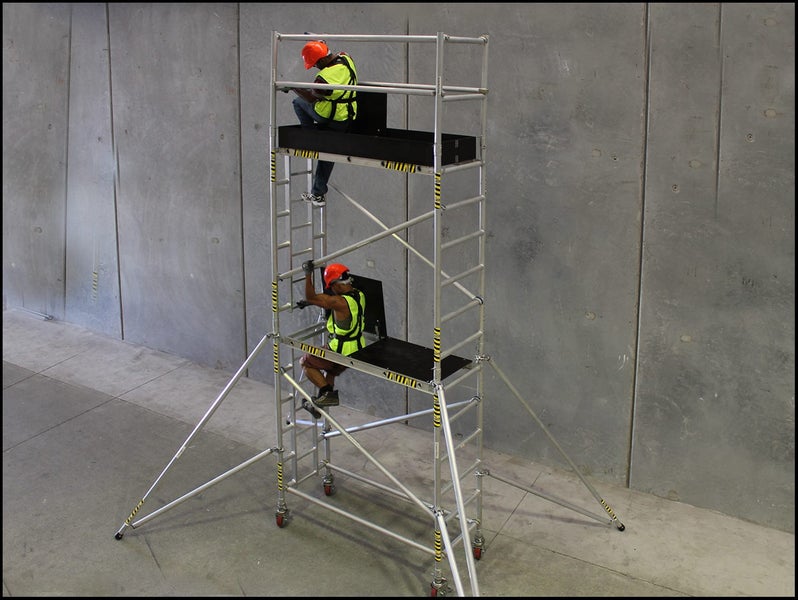

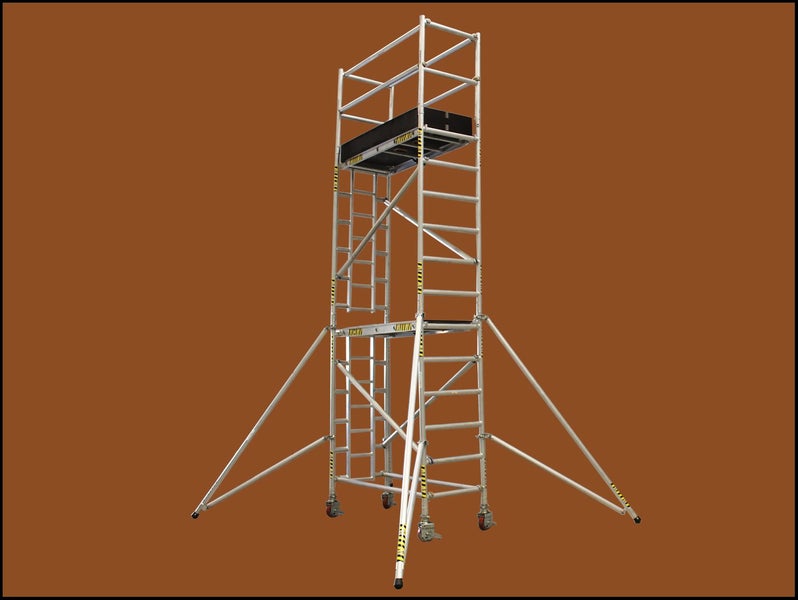

This is 4M mobile aluminium scaffolding for industrial use. Overall height is 5M. Top platform height is 4M. Scaffolding is 1.8M wide and 0.7M deep. Total weight is 139Kg.

Complies with Australian and New Zealand AS/NZS 1576.1:1995 standards.

Maximum loading on scaffolding is 448Kg. Maximum loading on each platform is 224Kg.

Ideal scaffolding for narrow spaces. Frames, bracing outriggers etc. are constructed with 2” outer diameter and 2.0mm wall thickness aluminium. All the frames ends are reinforced to double thickness.

Platforms have trapdoors and opens side to the platform. This makes easier to the user as feet can planted on the cross bar of the platform end. Platforms are made of aluminium frame with treated plywood decking. Surface of the platforms are serrated for better grip and minimize accidental slipping. This scaffolding has two Trap door platforms.

All joints are fully welded for maximum strength. High tensile spring pins lock the frames together preventing accidental dislodging.

Braces are self-locking spring loaded type. Hooks are easy to fit or remove they can be locked into place in one simple operation. They are colour coded in Blue and Yellow for easy identification.

Following are the list of items for this scaffolding.

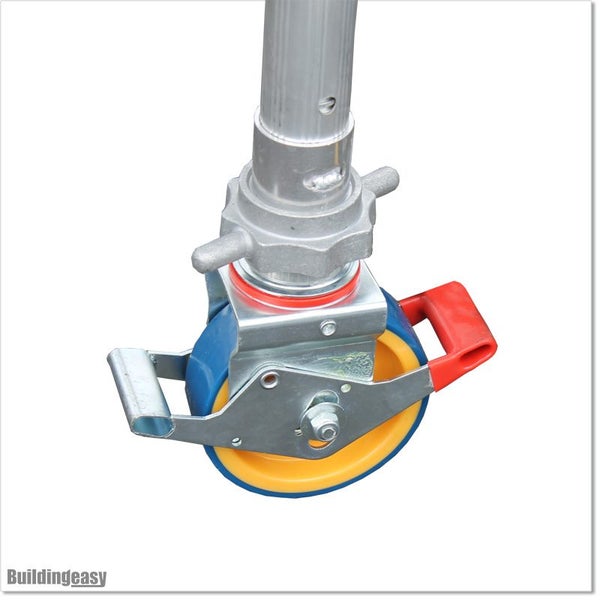

Frame 6 row – 2 Ladder Frame 6 row – 2 Guard rail frame – 2 Yellow hook brace (for guiderail and bottom frames) – 6 Blue hook brace (for cross bracing) – 4 Outriggers set – 4 Platform with side open hatch – 2 Adjustable screw jack caster – 4 Toe board - 1

Additional parts / spare parts can be bought separately for this scaffolding.

Please check my other auctions for different types of Scaffoldings which may suit you better.

Shipping costs given are around the given cities. Please contact for out of city and rural delivery costs.

We provide GST invoice if you need it.

Watch the Assembly Video with following link.

https://www.youtube.com/watch?v=TNFcKoXDI0w
