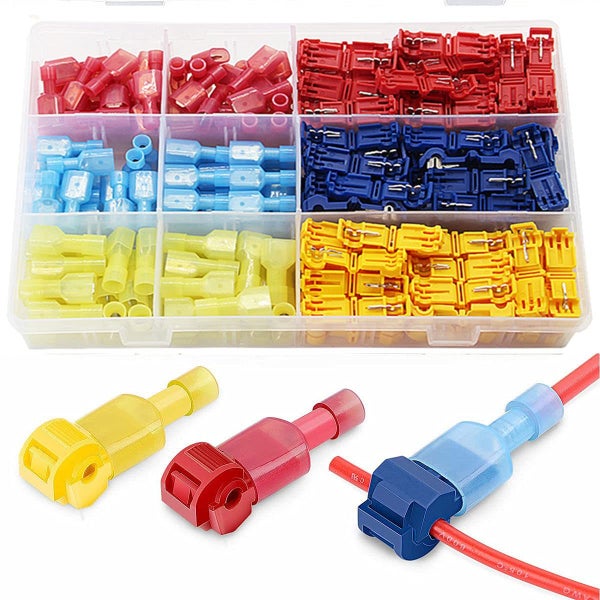

240PCS Self-Stripping Quick Splice Wire Terminals

Specifications: Material: PVC + Copper, Plating Tin Color: Red, blue and yellow

Features: Tap into any wire with easy. Allows making connections between wires that can be connected and disconnect. The cores are made of true tinned copper for maximum conductivity and the strongest crimps.

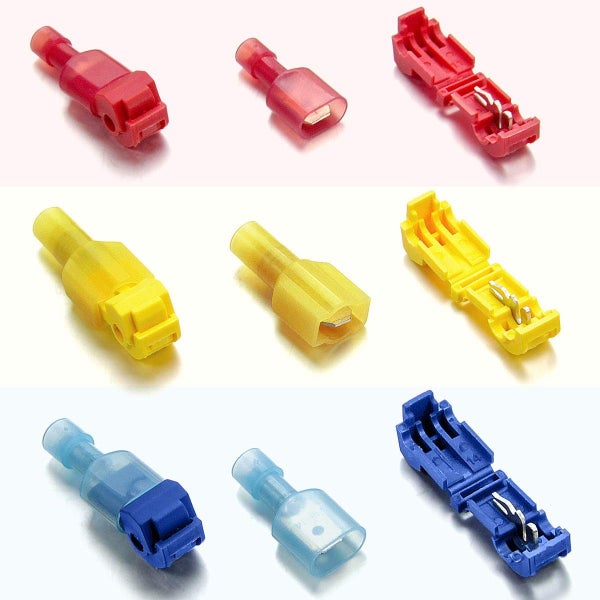

Package: Quick Splice Connector: Red: 40pcs A.W.G 22-18 - Wire range (0.5-1.0mm²).(Max current 10A). Blue: 40pcs A.W.G 16-14 - Wire range (1.5-2.5mm²). (Max current 15A). Yellow: 40pcs A.W.G 12-10 - Wire range (2.5-4.0mm²).(Max current 20A). Nylon Fully Insulated Male Spade terminals: Red: 40pcs A.W.G 22-18 - Wire range: 0.5-1.5mm² (Max current 10A). Blue: 40pcs A.W.G 16-14 - Wire range: 1.5-2.5mm² (Max current 15A). Yellow: 40pcs A.W.G 12-10 - Wire range: 4-6mm² (Max current 24A).

How to Use 1.Put the wire in the connector. 2.Use the pliers to fold the connector over the wire. Squeeze the connector together until it locks. 3.Insert the wire into the spade, and crimp it down to secure the wire. 4.Plug the spade terminal directly into the tap connector.Now you have a secure and insulated connection.
