200 PCS Heat Shrink Butt Connectors

Specifications: Heat activated 3:1 shrinkage ratio sleeve of tubing for a secure seal Auto, Cars, trucks, boats, stereo audio AV, underground cables, and 12 volt accessories Hot-melt adhesive provides excellent waterproof property
Excellent stretch and mechanical damage resistance
Ideal translucent provides tensile strength

Operating temperature range: Operating temperature: -55? - 125? Start shrink temperature: 80?(176°F ) Fully shrink temperature: 130?(265°F)

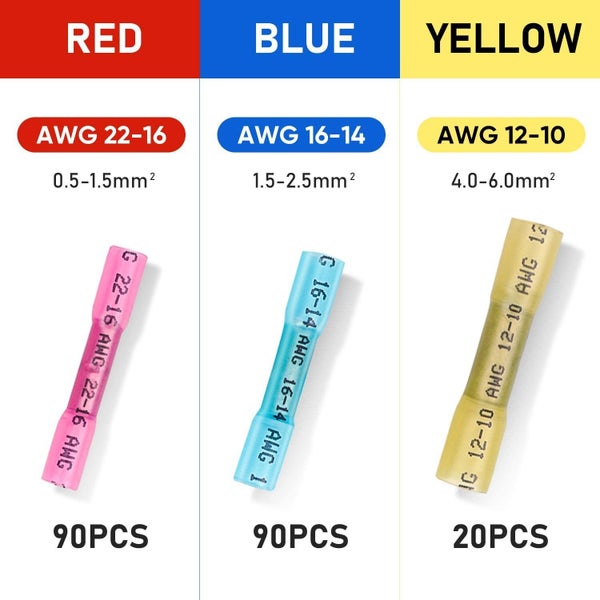

Size: 90 x Red Heat Shrink Butt Connectors : Suits cable / wire sizes 22-18AWG / 0.5-1.5mm²; 90 x Blue Heat Shrink Butt Connectors: Suits cable / wire sizes 16-14AWG / 1.5-2.5mm²; 20 x Yellow Heat Shrink Butt Connectors: Suits cable / wire sizes 12-10AWG / 4.0-6.0mm²;

Step to Use: Select a heat shrink connector to suit size.Strip insulation to 8mm and insert into splice barrel. Crimp using the tool for insulated connectors. Apply heat while rotaing the connector.For best results use heat gun or a mini blow torch. Inspect your waterproof quality connection.

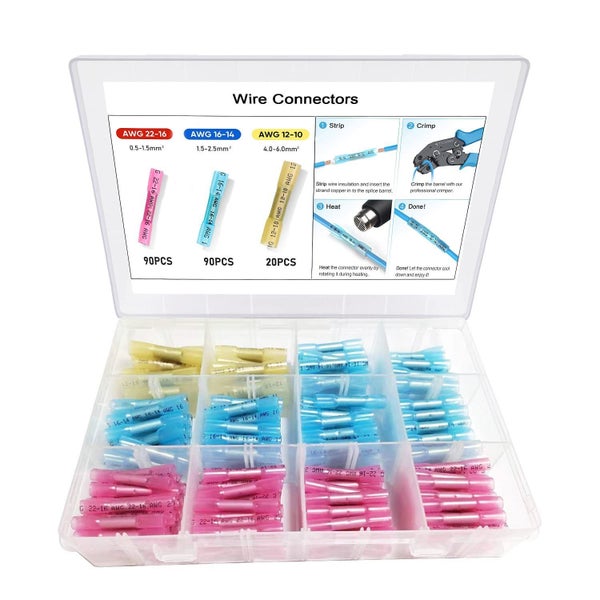

Package 1 box Wire Connectors Kit 200PCS

In stock for next working day delivery from NZ
