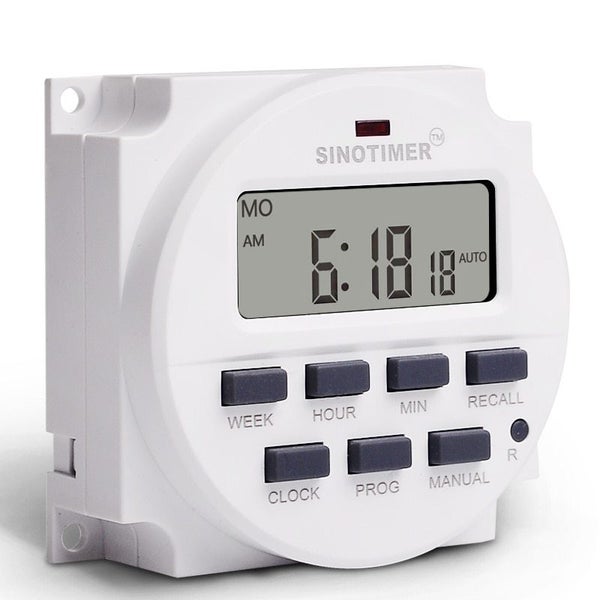

Programmable 7 days Dig Timer Switch SINO TM618N-3

Features:

1. 1.6 inch big LCD display,easy to read.
2. Excellent load capacity, voltage-free output. 16amp@250Vac 3.Repeat programs with 16 on/off settings, and setting on/off manually. 4.16 ON/OFF programs per day, 15 combinations to a week.24 hours / 7 days a week programmable. 5.Built-in battery for backup the memory (save the programs you set)when power failure.

Specifications: Model:TM618N-3 Temp.range: -20°C+50°C Power Supply: 24V DC Power consumption 4.5 VA (MAX) Display: LCD Switching contact: 1 changeover switch Programs:16 on/off each day or week Hysteresis 1 sec/day (25°C) Mini interval: 1min Capacity: 16(8) 250V AC Black-out: 60 days Timer range: 1min~168hr Recharge battery: 1.2V 40Ma Average error: 1s/24h, 25°C

Key Button:. 1.clock, timer, day, h+(setting the hours), m+(setting the minutes), manual override, reset;. Tips:. 2.Before starting the program, the timer should be charged for at least 5 minutes as the inbuilt battery may be low 3.Before setting the program, press the reset key, to clear the memory data and ready for the new instructions. 4.After the program is made, please insert the timer to the plug. Then connect the electrical appliance to the timer. 5.The on and off can be set eight times each day, which can be set as follow:. First option, Sunday. Second option: from Monday to Friday. Third option: Saturday and Sunday(weekend). Fourth option: from Monday to Saturday(working days). Fifth option: Monday, Wednesday, Friday. Sixth option: Tuesday, Thursday, Saturday. Seventh option: from Monday to Wednesday. Eighth option: from Wednesday to Saturday.
