Also known as 2053 120kg class drawer slides. The actual load capacity depends on the length of the runners.

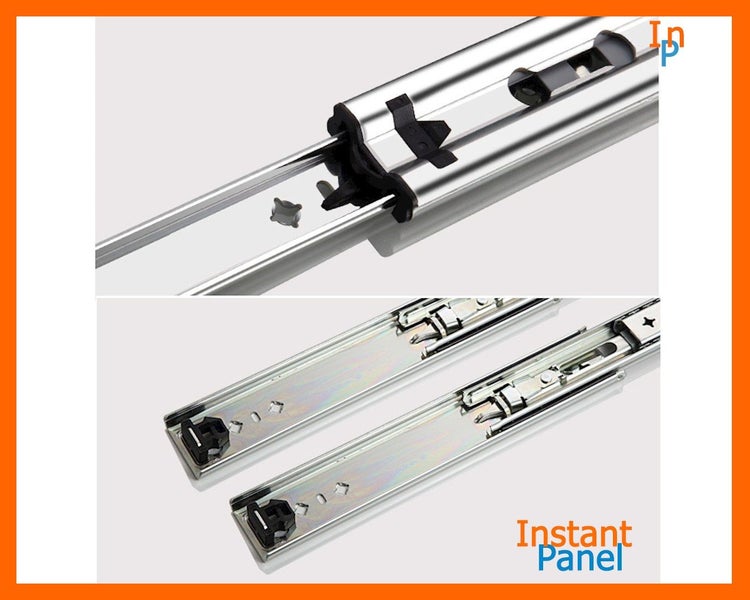

For lockable version, the slides can be locked either at fully closed or fully opened position by pressing down the lever. The length of the lock lever is 45mm. Please allow 50mm clearance if lockable slides are chosen.

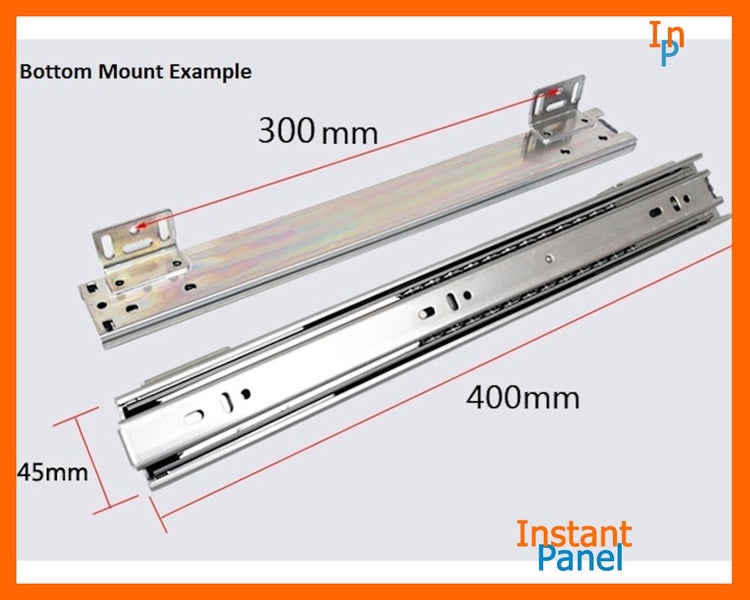

These quality ball bearing heavy duty drawer slides have 3 stage full extension, which means the fully extended length is double of the fully closed length.

The closed length of these slides is 600 mm, fully extended length is 1215 mm, rated capacity is 109 kg.

These slides are ideal for Warehouse, Cabinets, Industrial drawers, motor homes, commercial vehicles etc.

Recommended fixing: flat head M5 screws (not included).

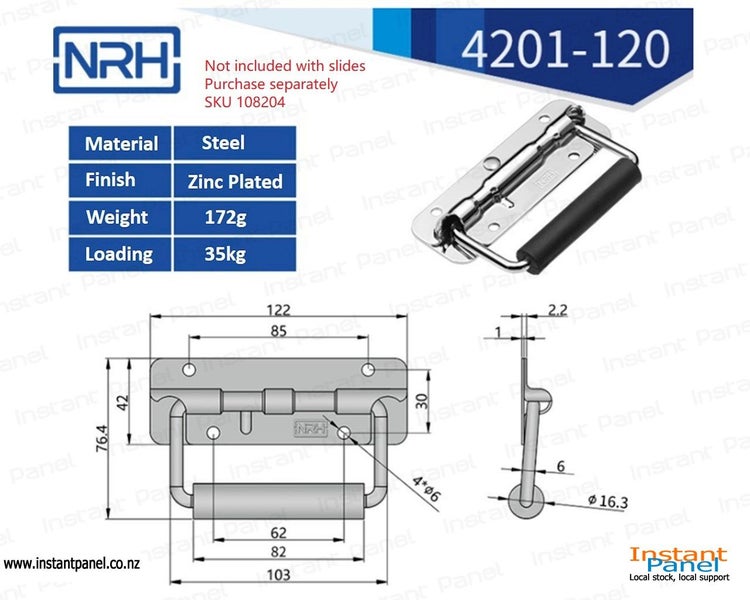

These spring loaded drawer handles work well with drawers in vehicles.

Please download the Installation Instructions for more detail.

Installation Videos Lockable https://youtu.be/4DUOwGM9uaw

https://youtu.be/iO9ueukX5II

Non-locking https://youtu.be/N_6MjGi3Ez4

Installations: Gaps must be 19mm in parrellel to the mounting wall throughout as the drawer slides in/out. If not parrallel, the inner rail is forced to get seperated from the outer rail, causing permanent damage. If the gaps are too large, especially installed in vehicles, the drawer gets wobbled sideways, which can cause permanent damage. For lockable version, if the inner rail is pulled out all the way, they cannot be swapped to mate with the opposite side of outer rail, or the ... Text Truncated to meet TradeMe limit
