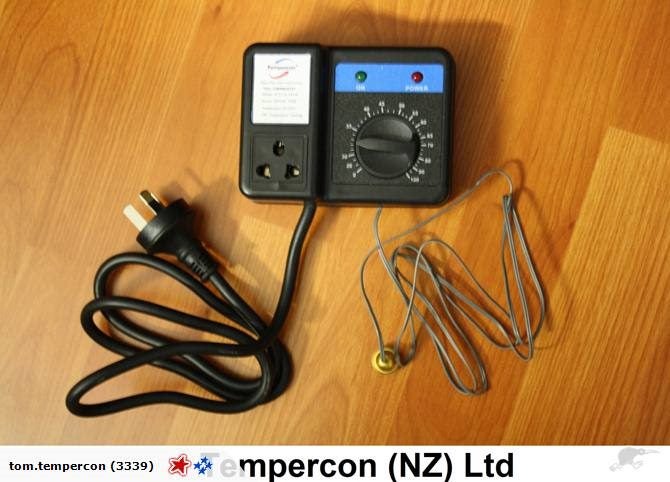

TC31 series microcomputer thermostat controllers are specifically designed to control boiler, wetback hot water cylinder, under floor heating, solar heater hot water circulation pumps.
It can be used for fire place hot air heat transfer ventilation system.

Specifications:

*Auto Run (switch on/off hot water circulation) *Temperature unit: centigrade *Temperature range: 0 100 centigrade *Maximum output: 1000W *Power supply: 230Vac 50Hz *Operating environment: temperature -2050, humidity<85%. *Temperature sensor: Magnetic type probe for easy fitting on metal steel pipe surface. *Wall Mounting size (LXW): 125mm x 95mm *Thermostat has NZ standard 3-pin plug. *Thermostat has socket output. *Thermostat has 1.5M magnetic type sensor probe.

Applications:

1. Hot water cylinder circulation pump:

Set 60C, if the probe temperature is above 60C in your hot water cylinder, thermostat will turn on circulator pump to transfer hot water through pipe system (hot water store, hot water supply or central under floor or air heating). If the probe temperature drops below 60C, controller will stop water pump.

1. Solar heater, wet back fire burner hot water circulation pump:

Set 50c, if the solar panel/wetback temperature is above 50C, thermostat will switch on circulator pump to transfer hot water to cylinder. If the Temp drops below 50C, controller will stop water pump.

1. Roof ceiling/Fireplace warm air heat transfer duct fan ventilation:

Set 35c, if the roof/fireplace area temperature is above 35 degree C, thermostat will switch on duct fan to transfer warmer air to duct system heating indoor rooms. If the Temp drops below 35C, controller will stop fan.
