A precision jig for routing draining grooves in solid timber and compact laminate worktops when installing Belfast, farmhouse, and undermount sinks.

This jig is quick and easy to set up and allows you to rout uniform, clean grooves into a wooden bench top for drainage into the sink.

Included:

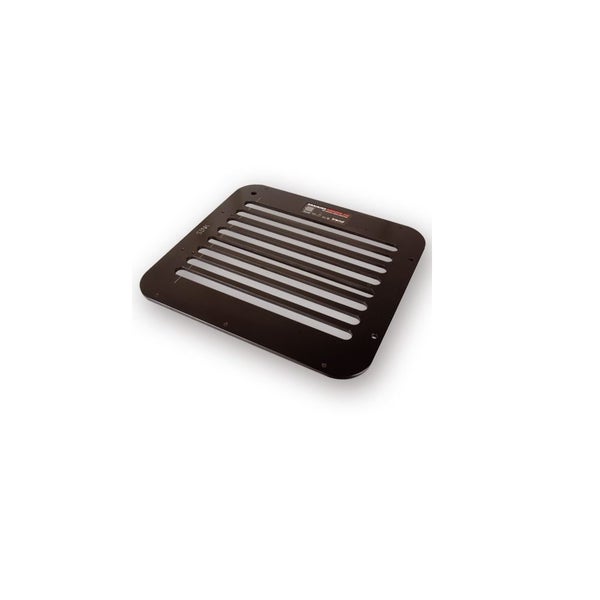

• 1 x 12mm CNC machined Compact Grade High Pressure Laminate Jig
• 1 x Cove cutter (1/2 inch shank, 9.5mm radius x 32mm cut Radius cutter - Trend C056AX1/2TC)
• 1 x Guide bush (outside diameter 30mm, inner diameter 27mm - Trend GB30)

Note you will need one extra adaptor to fit the guide bush to your router - please see TRD-UNIBASE

Features:

• Provides a 0.5 degree fall.

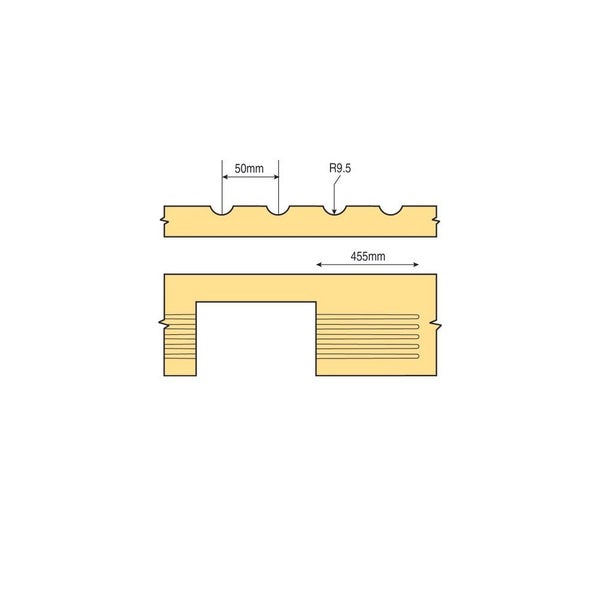

• Grooves at 50mm pitch and 455mm long.
• Grooves are 9.5mm radius
• Sight marks for lining up.
• Three removable sloping runners for support.
• Cutter diameter check hole.
• Fixing holes for user made stops for repetition work.

Specifications Fall 0.5 degree Groove pitch 50.0 mm Groove length 455 mm Slat width 19.8 mm Length 625 mm Height 585 mm Width 12 mm Weight 4.3kg
