Description

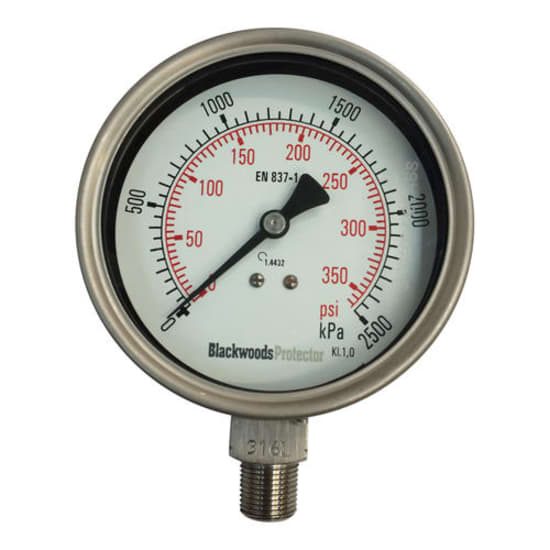

100mm stainless steel case pressure gauges are ideally suited to most industrial applications where high accuracy and durability are required. These gauges feature a 304SS case. 316L SS bourdon and socket (welded to case). Safety glass window, neoprene blow off disc, gasket and filling plug. These gauges are stored dry but can be glycerine filled on request. Accuracy 1% Ambient Temperature: -25 C to +65 C
TECHNICAL SPECIFICATIONS Term Description Brand/ Model Gauge Pressure Pressure Range Min/ Max 0/2500 Scale kPa Scale Type Dual Case Diameter 100mm Entry Bottom/ Stem Mount Connection 3/8" BSPT
