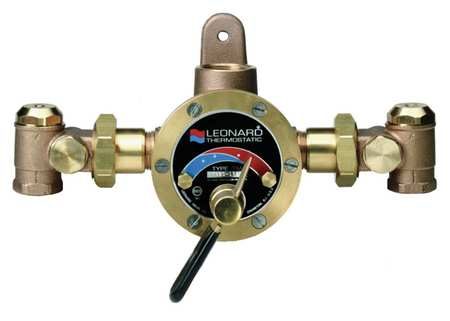

With a locked temperature adjustment cap to help prevent tampering, this LEONARD VALVE steam and water mixing valve provides thermostatic mixing to maintain output water temperature for industrial steam mixing applications. Model has copper encapsulated thermostat assembly with polymer thermoplastic shuttle.â?¢ Stainless steel springs for long lifeâ?¢ Integral check valves on hot and cold inletsNote: This valve's Inlet Temperature is for both steam and hot water.

Thermostatic Mixing Valve, Body Material Bronze, Flow Rate 30 gpm, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 1 in, Temp. Range 65 Degrees to 140 Degrees F, Max. Pressure 80 psi, Overall Height 7 1/2 in, Overall Width 12 in, Inlet Temperature (Hot) 120 Degrees to 200 Degrees F, Includes Color Coded Temperature Scale, Heat Resistant Temperature Adjusting Lever, High Temperature Limit Stop, Integral Wall Support
