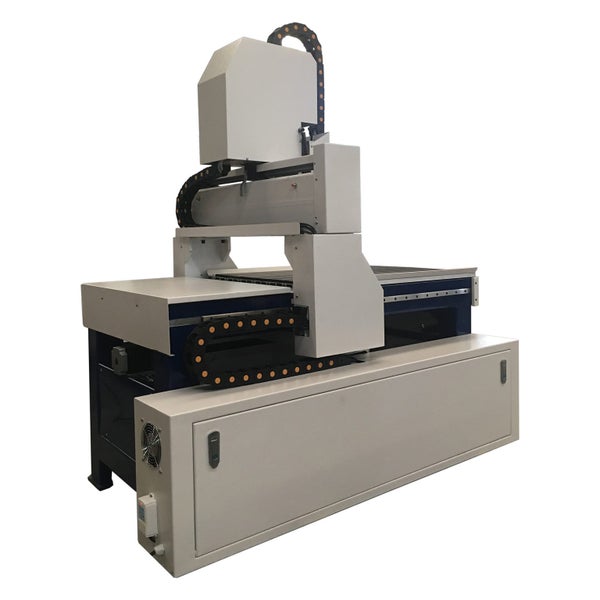

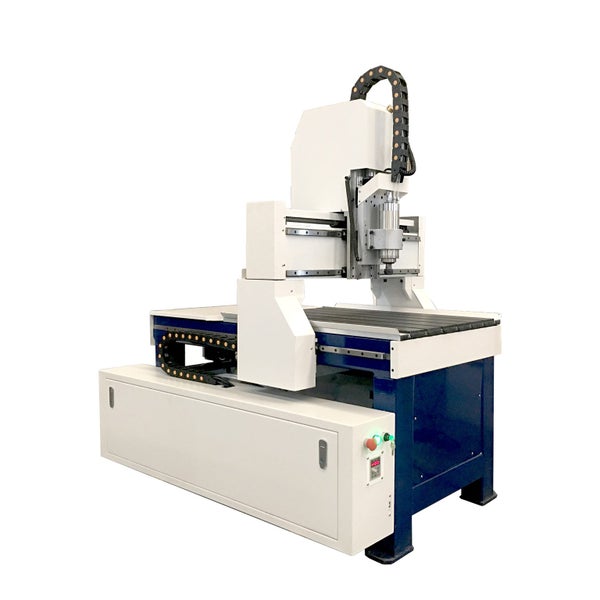

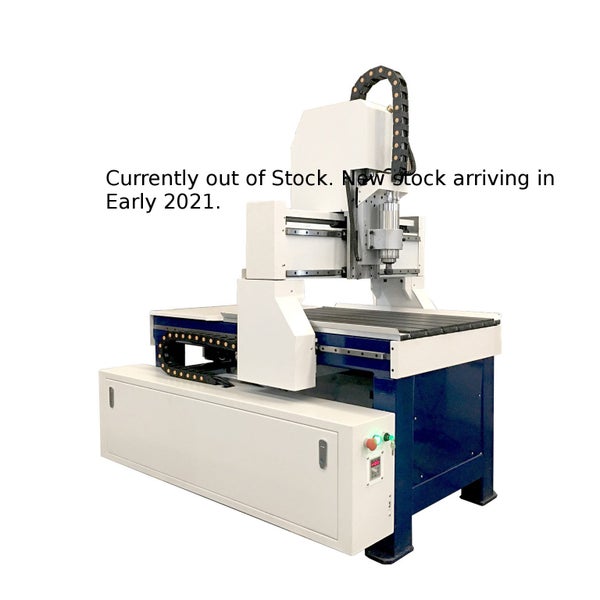

Description Our 600mm x900mm CNC router is an efficient and affordable 3-axis CNC router that is high in quality. It cuts very well and has tremendous finishing. It comes with easy-to-use Syntec Operating System, high quality square linear guide rails, 3-axis, ball screws drive. Standard 120mm travel on z-axis. The specially designed aluminum T-slot table with PVC pads can securely hold down any pieces you’re working on. In addition, the 2.2kw spindle is liquid-cooled, so you can machine long hours in production environments. You’ll find plenty of room for creativity — anything you can draw, it can cut. This machine is exactly the right machine for high performance in small workshops.

Features Heavy duty steel structure provides high stability and accuracy 600mm x 900mm working area Aluminum T-slot table with PVC pads to securely hold down any work pieces 2.2kw water cooled spindle for long hours of machining Syntec controller High quality square linear guide-rail Comes with 3-axis ball screws and stepper motors as standard 120mm travel on Z-axis (250mm travel is available)

Specifications Working area: 600mm x 900mm Travel on Z-axis: 120mm

Spindle speed: Up to 24000rpm Collet size: ER20

Working accuracy: 0.05mm Repetitive positioning accuracy: 0.01mm Rapid travel speed: 10m/min Max. working speed: 10m/min Working voltage: 220v. 50hz, single phase Environment temperature: 0 – 45 ? Environment humidity: 30% - 75% Approx. machine weight: 450kgs Machine dimensions: 1500mm x1000mm x1900mm

For further information our website is http://www.rosscnc.co.nz
