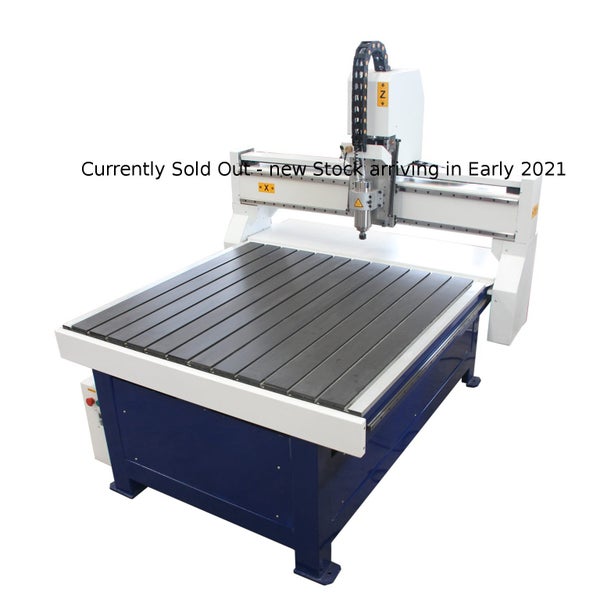

Description Our 1200mm x1200mm CNC router is an efficient and affordable 3-axis CNC router, low in price and high in quality. It cuts very well and has tremendous finishing. It comes with easy-to-use Syntec operating system, high quality square linear guiderails, ball screws on all 3 axes, standard 120mm travel on z-axis… The specially designed aluminum T-slot table with PVC pads can securely hold down any pieces you’re working on. In addition, the 2.2kw spindle is liquid-cooled, so you can machine long hours in production environments. You’ll find plenty of room for creativity — anything you can draw, it can cut. This machine is an exact high-performance machine for small workshops.

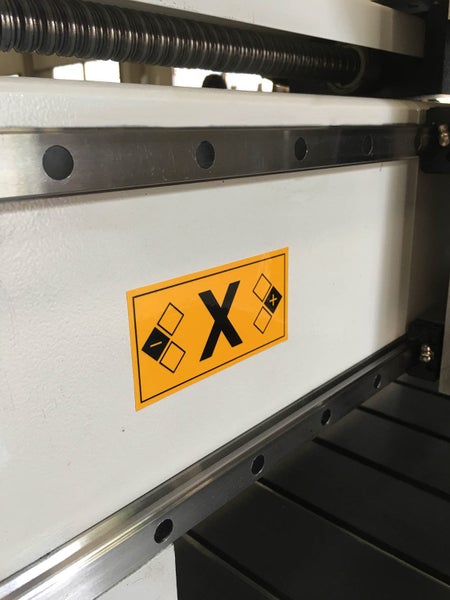

Features Heavy duty steel structure provides high stability and accuracy 1200mm x 1200mm working area Aluminum T-slot table with PVC pads securely holds down any workpiece 2.2kw water cooled spindle for long hours machining Easy-to-use Syntec Controller High quality square linear guiderails Comes with 3-axis ball screws and stepper motors as standard 125mm travel on Z-axis (250mm travel is available) Servo motor

Specifications Working area: 1200mm x1200mm Travel on Z-axis: 120mm Whole structure: steel structure Table type: Aluminum T-slot table with PVC pads Guide rail: Square linear guide rails Driving method: Ball-screws on X/Y/Z Spindle: 2.2kw water cooling spindle Spindle speed: 24000rpm Collet size: ER20 Control system: Syntec Controller Working accuracy: 0.05mm Repetitive positioning accuracy: 0.01mm Rapid travel speed: 10m/min Max. working speed: 10m/min Working voltage: 220v. 50hz, single phase Environment temperature: 0 – 45 degrees Celsius Environment humidity: 30% - 75% No coagulate water Approx. machine weight: 600kgs Machine dimensions: 1800mm x1600mm x1900mm
