Brand New Double Swing Gate Opener. Heavy duty motor and long lasting stainless body.

12 Months rtb warranty

Ideal for DIY projects or professional work. We do sell optional accessories such as WiFi Controller, wireless key pads, photo cells, GSM remote controller.

Features:

• OPEN, STOP, CLOSE cycle, control by one button on the remote control.
• Automatic close function, time is adjustable.
• Works with infrared sensor, alarm strobe lamp, external button switch
• Interface for GSM, infrared sensor, alarm light, wall button.
• Manual key release designed for emergency purposes.
• Control Board is supplied to control the gate operator.

• Keypad / single button interface.
• Infrared safety sensor interface.
• Working time is adjustable.
• User can select Auto-close function.

Specifications: Power supply: 240V/ 50Hz or DC 24V (from optional Solar) Gate moving speed: 18~22 second per 90 (approx) Max width of each gate: 2.5M Max weight of each gate: 300KG Max.piston stroke: 30cm

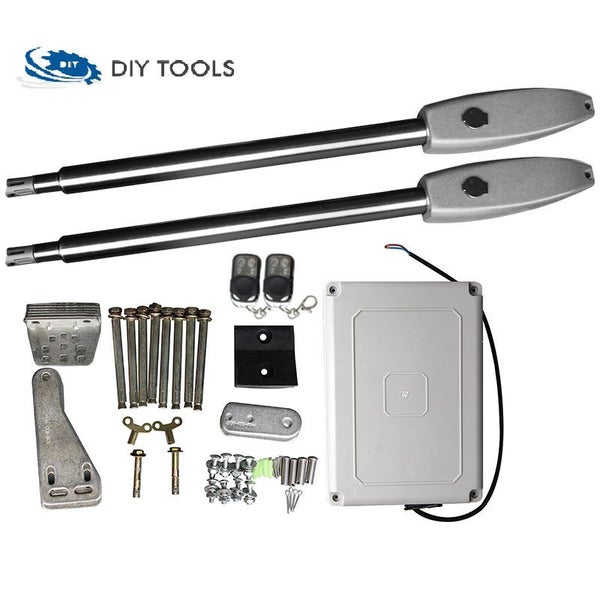

Package contents (Basic Kit): 2 x Motor Arm 1 x Manual release bar 2 x Remote control 1 x Control box 4 x Wall bracket 2 x Front mounting bracket 2 x Connecting bracket 2 x Mounting screw (short) 2 x Mounting screw (length) 4 x Screw M8×25 8 x Nut M8 1 x Safety stopper 1 x User manual

Following optional accessories available at additional cost:

• Spare remotes
• Wireless key pad
• Infrared Safety Photocell
• GSM Remote Opener(SIM card not included)
• Wifi Controller
• Electric gate lock

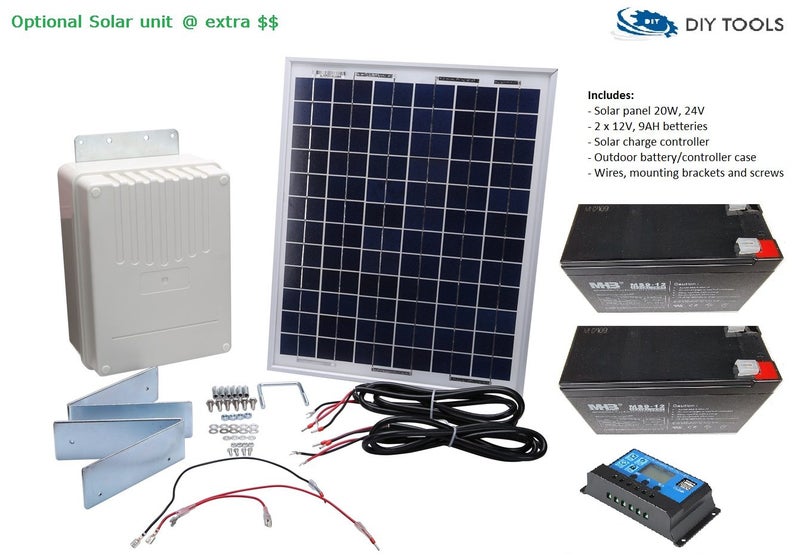

• Solar unit

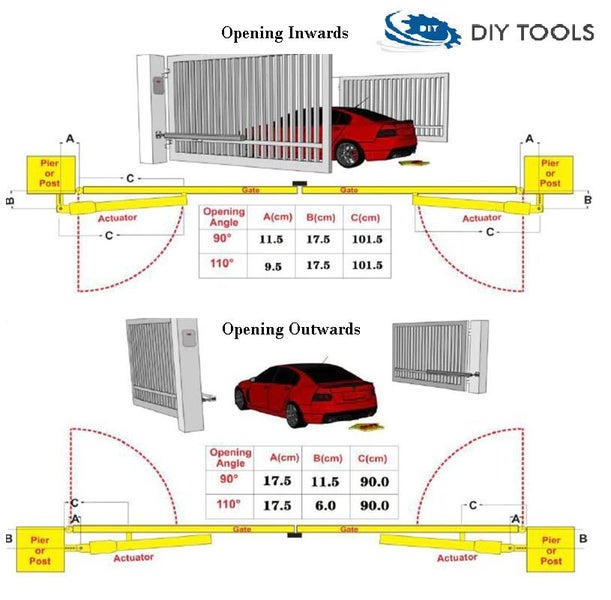

Note: You need to install stopper to lined the gates together against the stopper, otherwise gate will swing other way and break the motor!.

Thanks for your support,

Please reach out if you are in Auckland and need an installer to install your motor. Thanks
