Welcome to Instant Panel To search other products, please go to Seller's other listings then search the SKU or keywords.

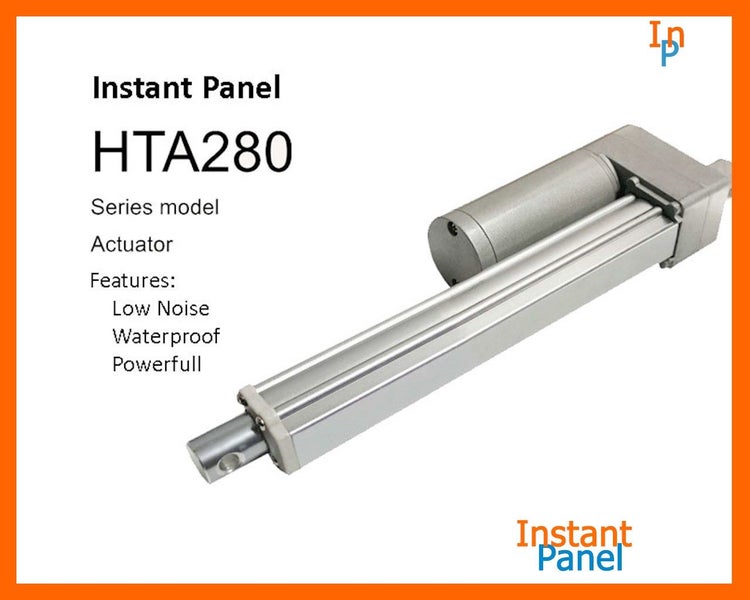

This is a Linear Actuator with 600 mm stroke (travel length).

This actuator should always be used with an in-line fuse to protect the DC motor from over current.

This actuator cannot be operated with other actuators synchronously.

For synchronous system, the actuator needs to have a built-in position feedback sensor and multiple actuators connect to a dedicated synchronous controller. We can supply synchronous system with 2, 3 or 4 actuators, lead time is 2 - 3 weeks. Control can be done by a keypad and/or remote fobs.

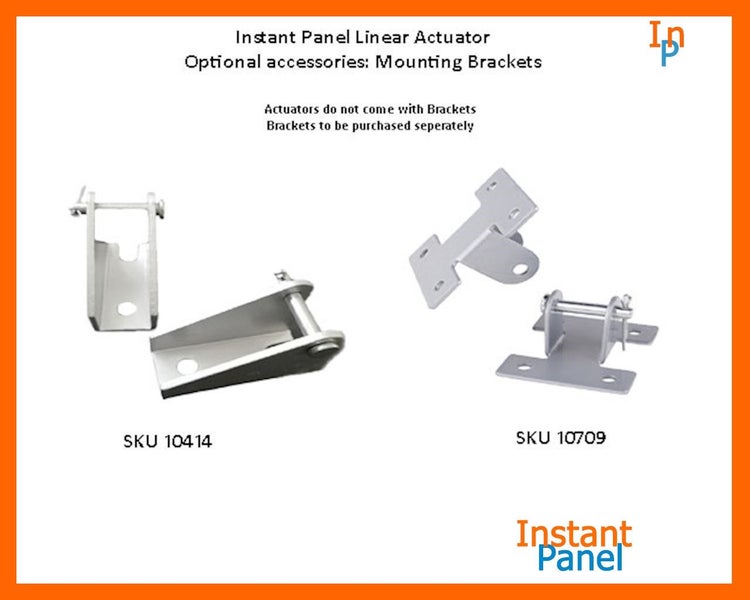

For linear actuator brackets, simply search keywords "brackets" or search in the hardware category or search for these SKU number SKU 10414 (heavy duty) SKU 10709

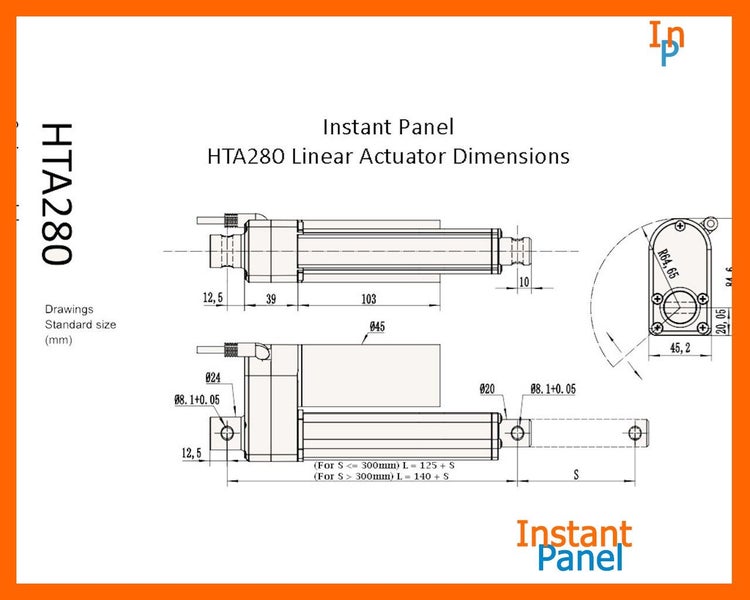

Specs: Actuator Model: HTA280 Initial Length: 740 mm Travel (Stroke): 600 mm Supply Voltage (Voltage): 12 V Speed: 24 mm/s Load Capacity (Rated Load): 60 kg Power Rating Peak: 60 W Power rating continuous: 50 W Current Rating: 5 A Operating Temperature: -20 to +45 C Limit Switches: Built-in both ends IP Rating: IP66 Noise level: <45 dB

Other actuators available SKU, Initial length, Travel, Supply Voltage, Load Capacity, Price

108221, 740mm, 600mm, 24V, 60kg, $255.99 108218, 640mm, 500mm, 24V, 60kg, $235.99 108222, 425mm, 300mm, 24V, 60kg, $225.99 108226, 325mm, 200mm, 24V, 60kg, $175.99 108251, 540mm, 400mm, 24V, 100kg, $225.99 108224, 225mm, 100mm, 12V, 60kg, $149.99 108199, 375mm, 250mm, 24V, 200kg, $205.99 108225, 225mm, 100mm, 24V, 60kg, $149.99 108248, 325mm, 200mm, 12V, 250kg, $175.99 108273, 975mm, 850mm, 12V, 150kg, $305.99

Pick up in Shirley area near the Palms Mall. We are GST registered, price includes 10% TradeMe fees and GST. STOCK: this item is stocked in Christchurch.
