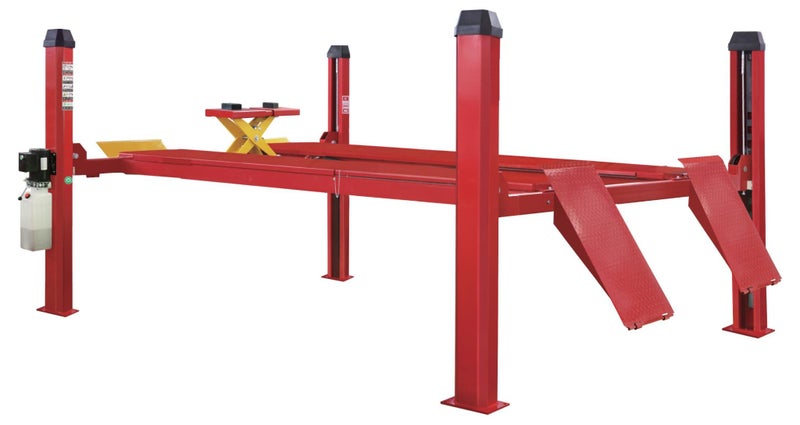

Hydraulic Four Post Lift

Wheel alignment compatible

Features:

1. Manual lock release.

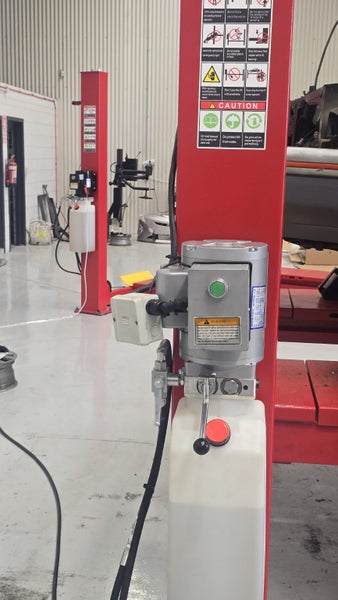

2. Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.
3. Hydraulic cylinder drive, rope drive, quiet and smooth lifting.
4. With wire control security lock, with a wire rope fracture protection, operation safety.
5. Eight—point locking system, easy to operate.
6. Can be locked in the desired height of operation, safety and reliablity.
7. Runway spacing is adjustable for different wheel base vehicle.
8. With the second lift pulley, can adopt the manual release, pneumatic release and hydraulic.

Technical specifications:

Lifting capacity: 5000kg

Lifting height: (Main) 1500mm (Jack) 350mm Min. height: 200mm

Length of the platform: 5000mm Platform width: 550mm

Motor power: 2.2kw-230v

Oil pressure rating: 24Mpa

Air pressure: 0.6-0.8 MPa

Weight: 1250kg

Warranty:

Three years warranty on structure. One year warranty on parts.
