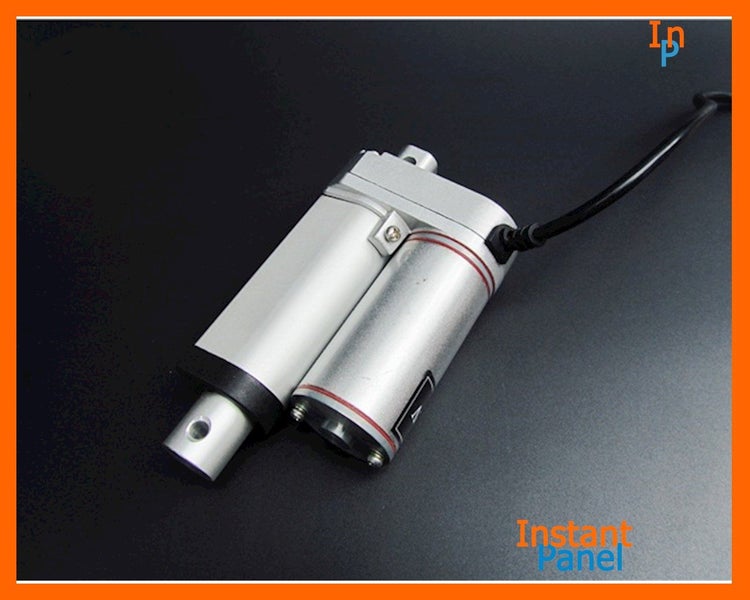

This is a Linear Actuator with 250 mm stroke (travel length).

This actuator should always be used with an in-line fuse to protect the DC motor from over current.

This actuator cannot be operated with other actuators synchronously.

For synchronous system, the actuator needs to have a built-in position feedback sensor and multiple actuators connect to a dedicated synchronous controller. We can supply synchronous system with 2, 3 or 4 actuators, lead time is 2 - 3 weeks. Control can be done by a keypad and/or remote fobs.

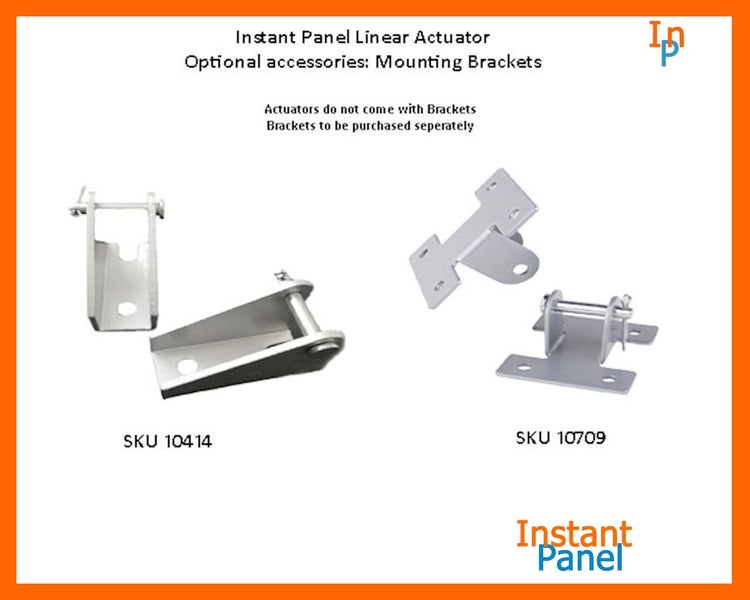

For linear actuator brackets, simply search keywords "brackets" or search in the hardware category or search for these SKU number SKU 10414 (heavy duty) SKU 10709

Specs: Actuator Model: LFHB Initial Length: 350 mm Travel (Stroke): 250 mm Supply Voltage (Voltage): 12 V Speed: 13 mm/s Load Capacity (Rated Load): 110 kg Power Rating Peak: 30 W Power rating continuous: 20 W Current Rating: 2.5 A Operating Temperature: -20C to +75C C Limit Switches: Built-in both ends IP Rating: IP65 Noise level: 54 dB

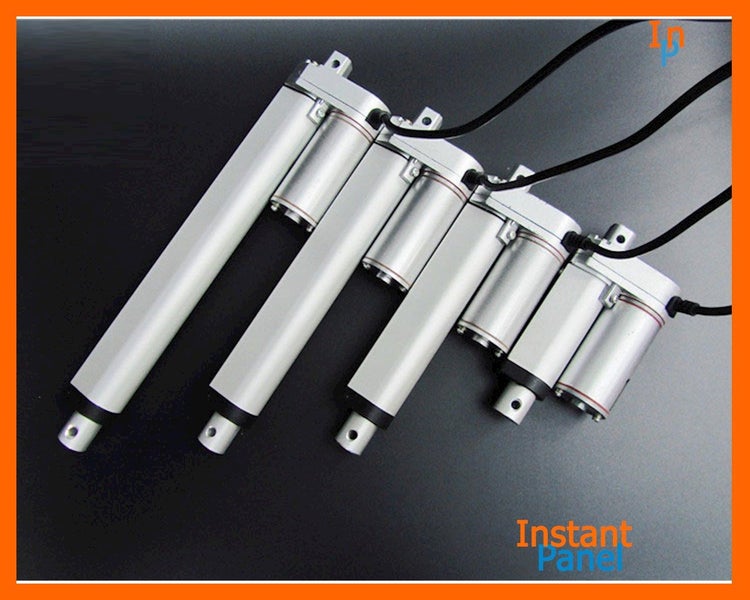

Other actuators available SKU, Initial length, Travel, Supply Voltage, Load Capacity, Price

108193, 350mm, 250mm, 24V, 110kg, $165.99 108191, 250mm, 150mm, 24V, 110kg, $145.99 108190, 250mm, 150mm, 12V, 110kg, $145.99 108188, 122mm, 15mm, 12V, 110kg, $119.99 108162, 548mm, 400mm, 24V, 60kg, $205.99 108105, 205mm, 100mm, 24V, 30kg, $149.99 108781, 650mm, 500mm, 12V, 30kg, $235.99 10796, 450mm, 300mm, 24V, 90kg, $185.99 10772, 300mm, 200mm, 12V, 130kg, $159.99 10797, 650mm, 500mm, 12V, 110kg, $235.99

Pick up in Shirley area near the Palms Mall. We are GST registered, price includes 10% TradeMe fees and GST. STOCK: this item is stocked in Christchurch.
