For FULL SPECIFICATIONS see our website or give us a call.

We have a lot of experience with these hoists and can give advice on their installation and operation. We can also provide service for their modification for 3-phase power and speed control etc to suit many different applications such as those used previously for outdoor TV screens, stage shows, home kills, apartment buildings, mortuaries, etc.

This hoist (which can also pull like a winch) bolts onto an overhead i-beam, box section steel, or Liffu gantry trolley to make easy work of any lifting jobs you have around the workshop.

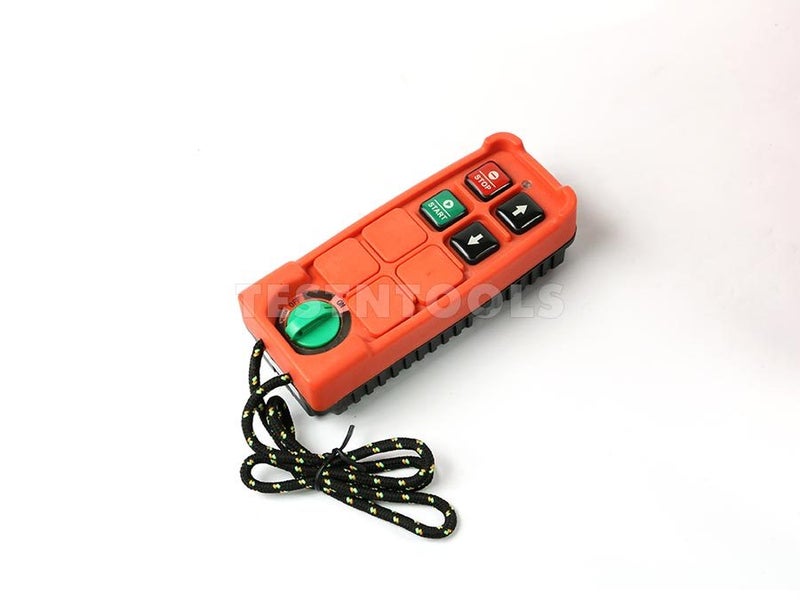

The wireless remote control allows operation from a safe distance without being restricted by a pendant cable. The remote can be locked away to prevent unauthorised use.

The maximum lifting capacity is achieved when the rope is doubled over with the included pulley hook. In a single rope configuration, the capacity is halved and the speed is doubled. The electromagnetic brake is released when the up/down switch is pressed making it fail-safe if power is lost.

FEATURES > Up/down switch > Emergency stop > Thermal overload protection > Up/down overrun protection > Electromagnetic brake > Hook ballast

SPECIFICATIONS Capacity 400Kg single rope, 800Kg double rope Lifting height 18m single, 9m double Lifting speed 8m/min single, 4m/min double Single phase 230V 1350W Brackets fit 45mm box section Size 415L x 150W x 228H mm^ Weight 19.6Kg^^

STANDARDS European 2006/42/EC EN14492-2 and EN60204-32 CE, GS, EMC, and RoHS

INCLUDES Electric hoist Wireless remote control and 2 x AA batteries Pulley hook for double rope operation ?Mounting brackets and bolts User manual

NOTES ^ Size of hoist without mounting brackets or hook. ^^ Total weight including brackets, pulley hook, remote control, and batteries.
