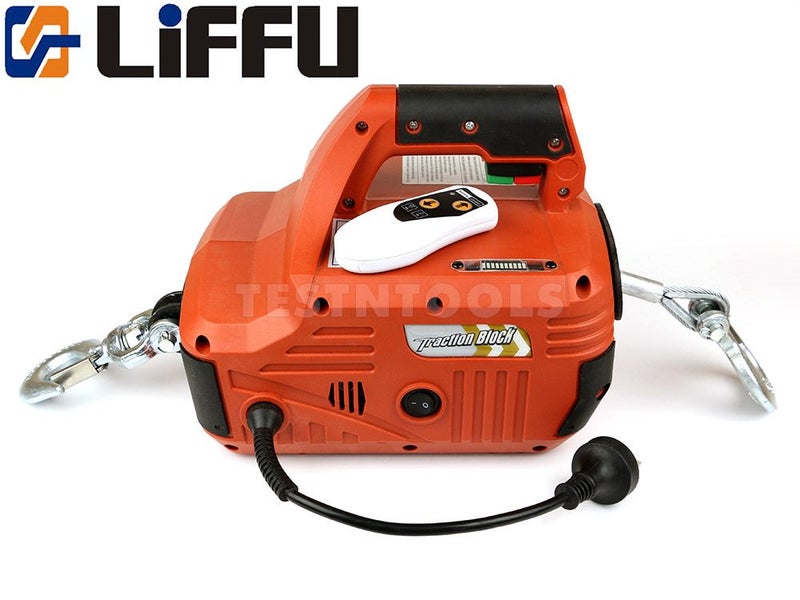

This is a combined hoist and winch so it can be used for both lifting and pulling applications. It's compact and weighs only 6.9 kg so it's very portable. No special mounting is required, just hook onto a mounting point that can handle the load.

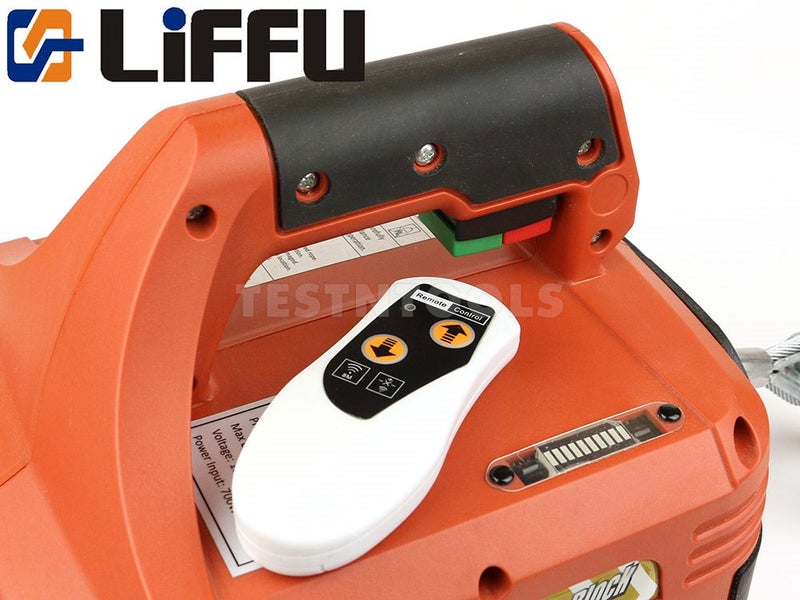

The infrared remote control allows operation from a safe distance without being restricted by the pendant cable. The remote can be locked away to prevent unauthorised use.

The self-locking gear train with dynamic braking makes it fail-safe in the event of a power failure.

FEATURES > On/off main power switch > Up/down switches on the hoist > Up/down infrared remote control > Motor overload protection > Thermal overload protection > LED load and overload indicator > Drop forged alloy steel safety hooks > Cable strain relief > Swivel top hook

SPECIFICATIONS Lifting capacity 450Kg Pulling capacity 900Kg Lifting height 4.6m Lifting speed 5m/min Wire rope diameter 5.6mm Hook to hook minimum 480mm Single phase 230V 1200W Infrared remote 2 x AAA's not supplied Body size 260L x 195W x 210H mm Weight 6.9Kg

STANDARDS European 2006/42/EC EN14492-2 and EN60204-32 CE, GS, EMC, and RoHS

INCLUDES Portable electric hoist Infrared remote control User manual

NOTES > There are no limit switches and there is some motor overrun once the button is released. Release the button when the load hook is at least 100mm from the rope entry to avoid damage to the hoist. > The infrared remote will operate other hoists of the same model. If using multiple hoists only power on one at a time.
