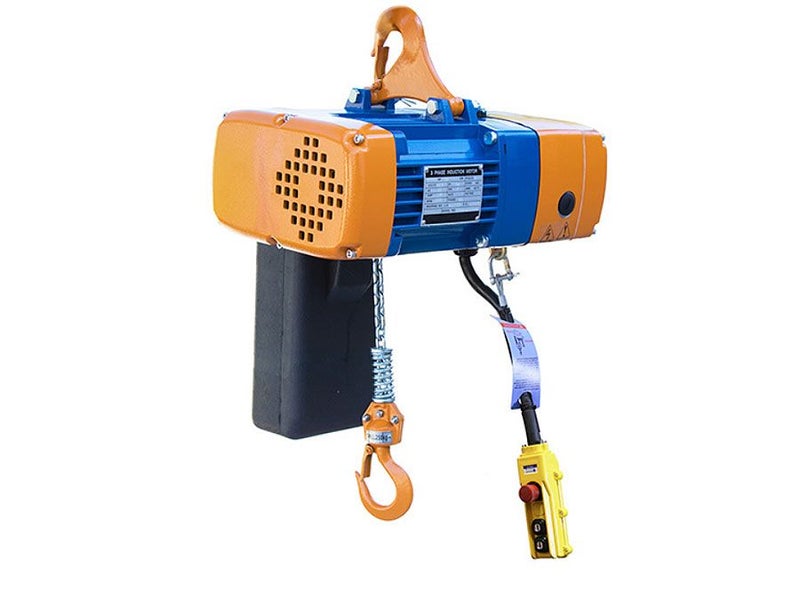

The Pacific Electric Chain Hoists offer a great balance between quality and price with inclusive features, making them suited for most applications. They are on 3 phase, 415V 50/60Hz, 60% duty cycle with the capacity from 250kg up to 5.0 Tonne. All models are tested to Australian standards AS1418.2.

FEATURES > DC brake > Motor thermal protection > Overload protection clutch > Fuse protection provided > IP55 hoist protection rating > IP65 pendant rating > Grade 80 zinc-plated load chain > Upper and lower electrical limit switches > Reverse phase protection relay on all models excluding 250kg

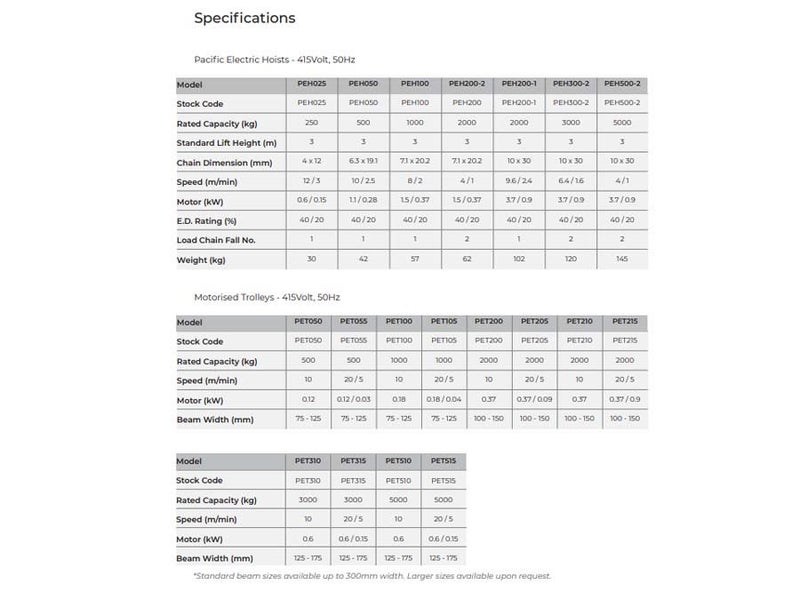

SPECIFICATIONS Capacity 0.5T Lift height 6m Pendant control 5m Chain size 6.3mm x 19.1mm Speed 10m/min Motor 1.1kW Power supply 3Phase 415V 50Hz Load chain fall 1 Weight for 3m lift 42kg

OPTIONAL > Radio remote control > Motorised trolley > Extension chain (sold per metre)

WHAT YOU GET Pacific Electric Hoist PEH0506NH 24V low-voltage pendant control Plastic chain-container Emergency Stop button Chain-gauge User manual

NOTE > Please contact us if you require a greater lift height, hoists can be modified to meet your criteria.

> There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
