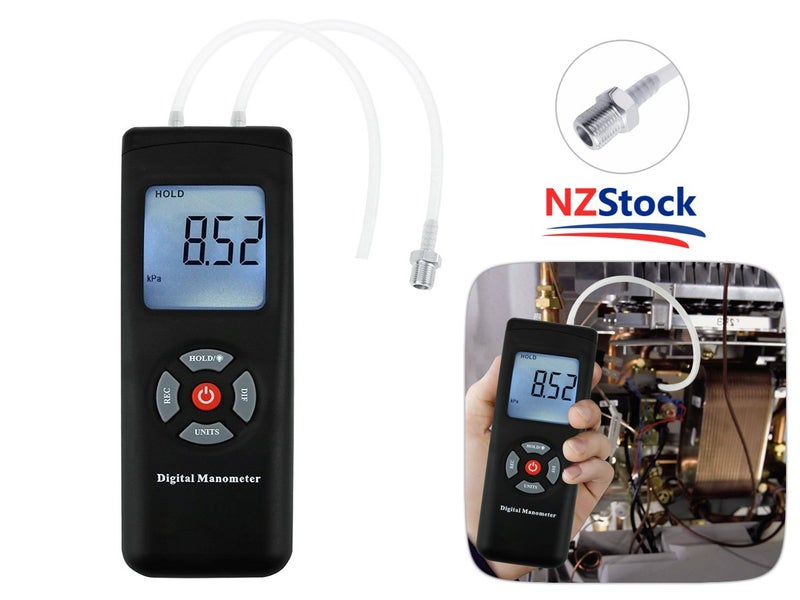

This Air Pressure Gauge can measure the air pressure of a single pipe or the differential pressure of 2 pipes. Air Pressure Gauge has 11 selectable units of measurement: kPa, psi, kgf/cm², Ozin², bar, mbar, inHg, mmHg, inH2O, ftH2O, cmH2O. This Air Pressure Gauge is a professional instrument to measure gauge and differential pressure in the ranges of ±13.78 / ±2 psi.

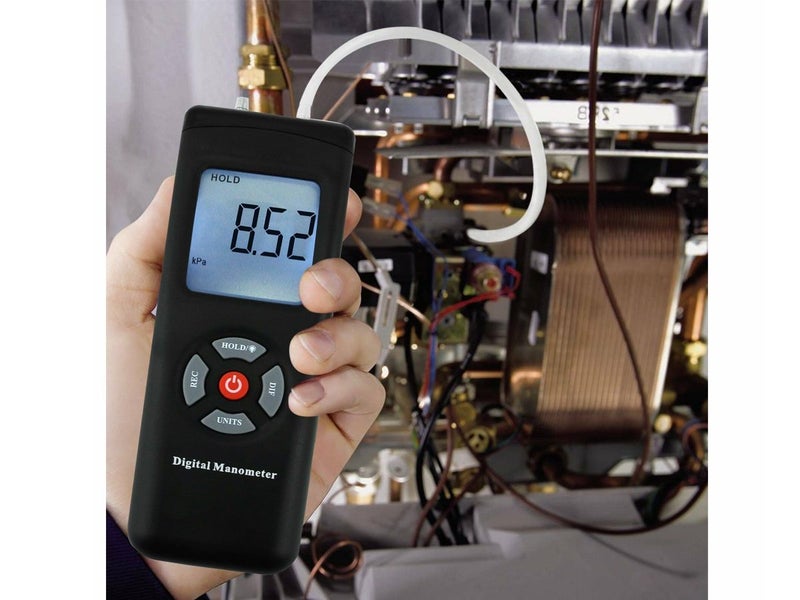

This battery-powered Air Pressure Gauge has a backlit digital LCD screen that shows: differential pressure mode, Max, Min, Average values, low battery/power symbol and pressure units. Air Pressure Gauge can be used for testing ventilation and air conditioning systems, point control, clean room, or any gas pressure system troubleshooting.

--- Ready NZ stock, ships instantly ---

!!! This Air Pressure Gauge Has Full Warranty For One Year !!!

Features:

• Air Pressure Gauge has 11 Selectable Measure Units
• Data hold function
• Support record Max, Min, Average values
• Backlit LCD Display
• Zeroing, offset and data compensation
• Powered via 9V Battery
• Low battery display and Auto power off set up function
• Air Pressure Gauge Comes with a carrying pouch

Applications:

This Air Pressure Gauge is ideal for use in the HVAC industry can measure the pressure of fans and blowers, filter resistance, wind speed, pneumatic controls, medical equipment, etc.

Specification:

• Product: Air Pressure Gauge
• Model: MAN-45
• Display Type: Backlit LCD
• Low battery Display: Yes
• Measuring Range: ±13.78
• Pressure Range: ±2PSI
• Response Time: 0.5s
• Power: Via 9V battery
• Positive Overload Alarm: Hi
• Negative Overload Alarm: Lo
• Pressure Units: 11: kPa, psi, kgf/cm², Ozin², bar, mbar, inHg, mmHg, inH2O, ftH2O, cmH2O ( Selectable)
• Tube Connector Size: 4.7mm
• Hose Diameter: Inner:3MM, Outer: 5MM
• Size: (L x W x H): 165 x 80 x 45
• Color: Black
• Weight: Approx. 250g

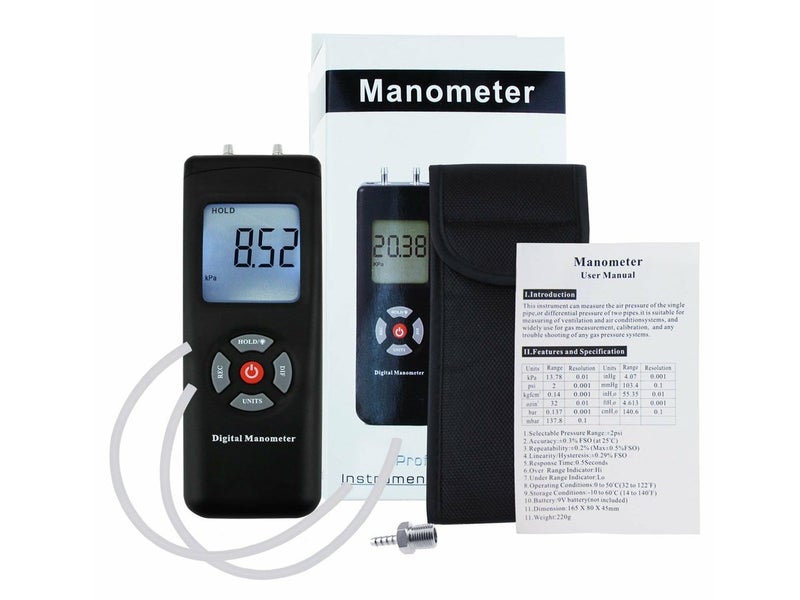

Package Includes:

1 x Air Pressure Gauge 1 x Pair of tubing's 1 x Carrying Pouch 1 x Metal Connector 1 x Manual 1 x Box
