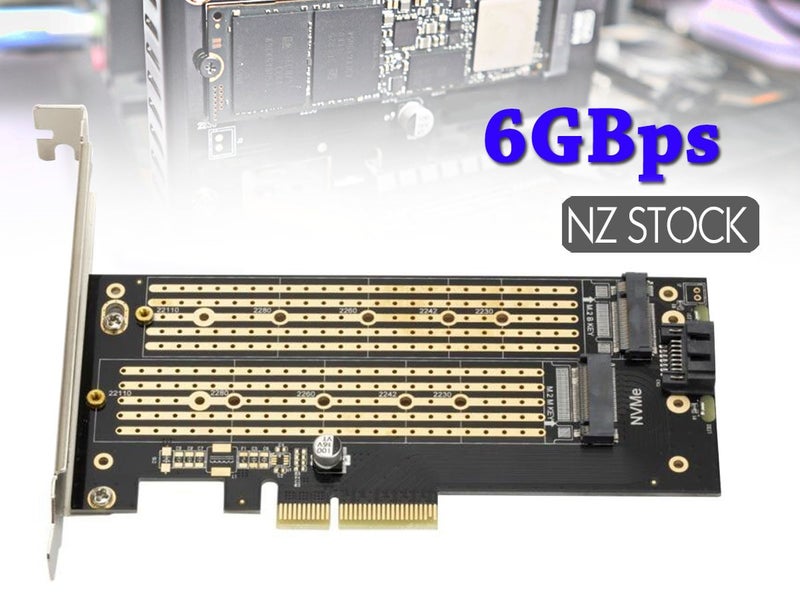

This Dual Protocol M.2 NVME/NGFF to PCI-E Expansion Card X4 X8 X16 Slots expansion card is based on a high-speed master control chip that is compatible with M-Key, B-Key, or B and M Key SSD in sizes: 2230/2242/2260/2280/22110. This Dual Protocol M.2 NVME/NGFF to PCI-E Expansion Card can support High-speed data transmission up to 6GBps, low latency, and energy efficiency.

This Dual Protocol M.2 NVME/NGFF to PCI-E Expansion Card has a double-sided sinking gold design that allows fast heat dissipation and prolongs its service life. The LED Indicators displays the working state: read and write status of the hard disk

---- FULL ONE YEAR WARRANTY ----

---- Ready NZ stock, ships instantly ----

Features:

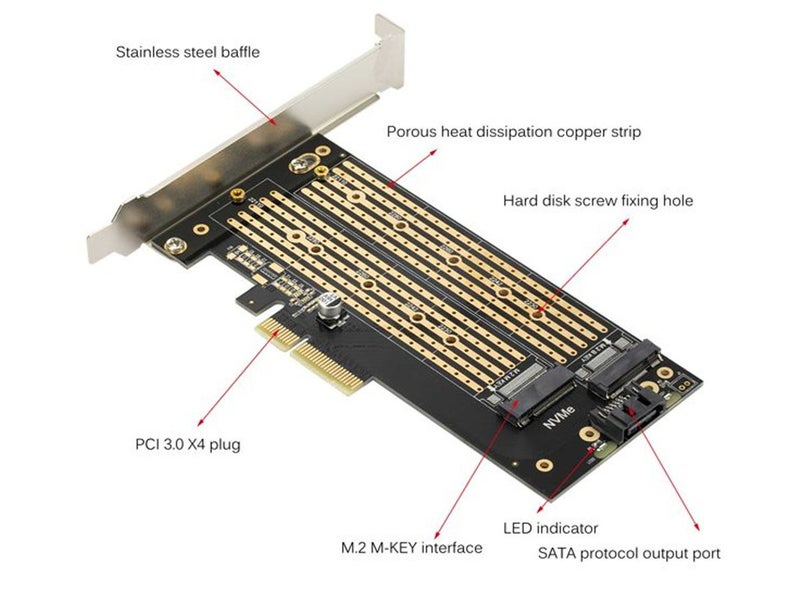

:: Internal PCIe x4 adapter :: Support PCIe x4, x8, x16 slots :: Comply with SATA III specifications :: Support data transmission speed up to 6.0Gb/s :: Double-Sided sinking gold design :: Better heat dissipation :: Extends the life of the SSD :: Supports SATA connection (7-pin) :: Built-In solid State capacitor :: Constant voltage, current and anti-surge protection :: LED Indicator :: Display Data read and write status :: Allow simultaneous expansion :: Adopts High power dc chip :: Ensure stable operation :: Supports PCIe 3.0 (x4) / SATA 3.0 transmission speeds.

Specifications:

Product: Dual Protocol M.2 NVME/NGFF to PCI-E Expansion Card Model: M2NN Type: Expansion card Power supply via PCIe interface (3.3 V) Bus type: PCIe 3.0 ( Backwards compatible with PCIe 2.0 and 1.0 motherboards ) Transmission Speed: 6GB/s System Support: All Windows, WinCE, and Linux, 32/64-bit. Support capacity: 2TB/Slot Applicable SSD Interface: Dual M.2 NVME/NGFF Protocol M-Key, B-Key, or B and M Key: 2230, 2242, 2260, 2280,and 22110 interface Line Length: 14CM Expansion Card Size: ( L x W x H): 14 x 6.8 x 2cm weight: 200g approx. Color: As Shown

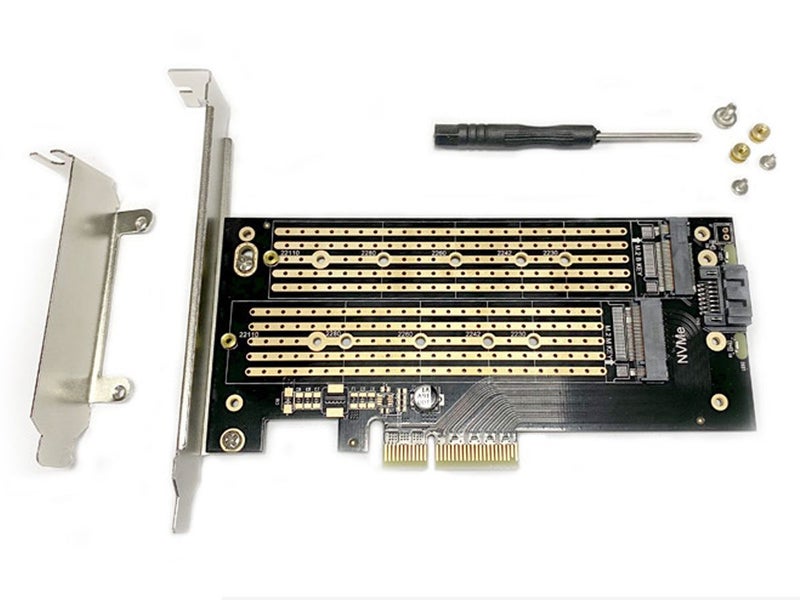

You Get:

1 x Adapter card 1 x Low Profile slot cover 1 x SATA cable 1 x Bag of screws 1 x Screwdriver
