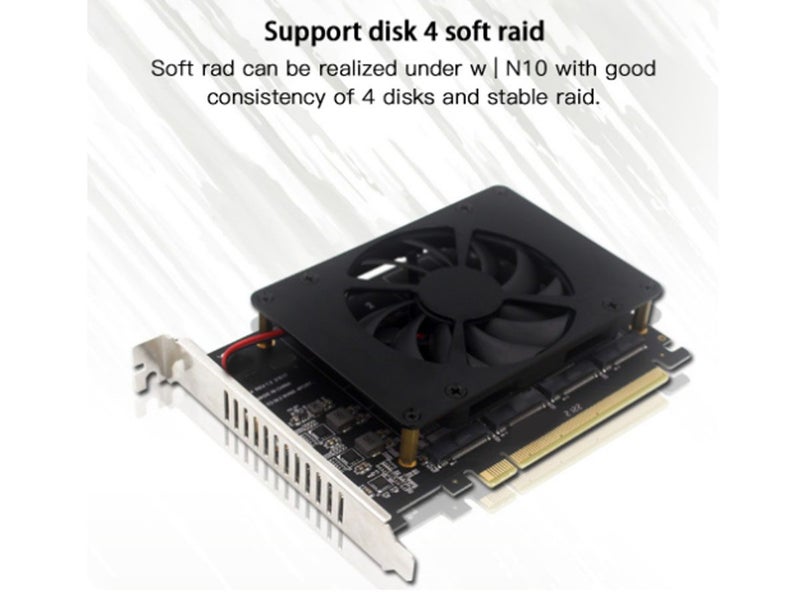

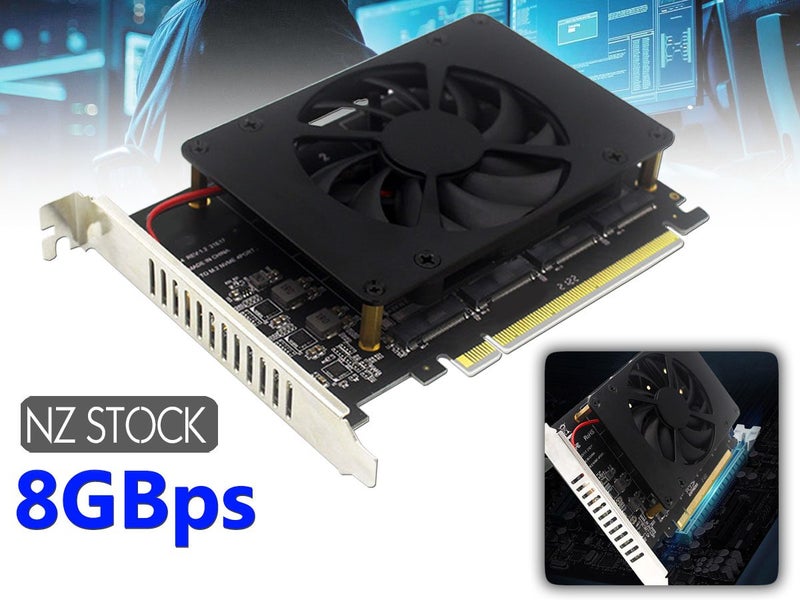

This compact size M.2 NVME to PCI-E X16 Expansion Card is based on a high-speed master control chip that is compatible with M.2 NVMe PCI-E X16 M-Key SSD in sizes: 2230/2242/2260/2280. This M.2 NVME to PCI-E X16 Expansion Card can support High-speed data transmission up to 4 x 32GBps, low latency, and energy efficiency.

This M.2 NVME to PCI-E X16 Expansion Card is also equipped with a heat dissipation fan to better protect the high-speed status of the hard disk, fast heat dissipation andprolong its service life. LED Indicators displays the working state: read and write status of the hard disk

-------- FULL ONE YEAR WARRANTY --------

--------Ready NZ stock, ships instantly--------

Features:

4-Disk SSD array Card Allow simultaneous expansion Adopts High power dc chip Ensure stable operation of SSD and m.2 PCI-E equipment Supports standard PCI-e 3.0 and PCI-e 4.0 transmission speeds. Adopts high-end circuit board Gold plated surface Supports PCI-E Split and PCI-E Raid Function Can strip data across multiple drives Good conductivity, strong wear resistance, oxidation resistance, LED Indicator Display Data read and write status High-speed transmission up to 4 x 32GBps High-quality Ball bearing Colling Fan Allow fast heat dissipation Extends the life of the SSD Support 4x4 full channels full speed NVME SSD's and m.2pc IE interface devices

Specifications:

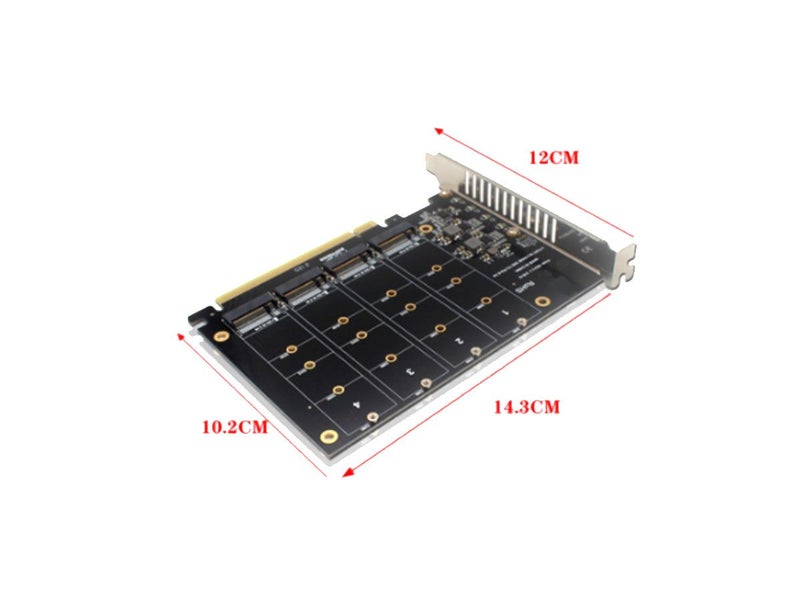

Product: M.2 NVME to PCI-E X16 Expansion Card Model: PH44F Type: expansion card Transmission Speed: 4 x 32GBps System Support: All Windows, Win CE and Linux, 32/64-bit. Support capacity: 4 x 2TB Applicable SSD Interface: M.2 NVME Protocol SSD M Key Only: 2230, 2242, 2260, 2280, interface Fan Size: ( L x W): 11.7 x 8.1 x 1.7cm Fan Clearance Height: 0.7cm Expansion Card Size: ( L x W): 14.3 x 10.2cm weight: 200g approx. Color: As Shown

You Get:

1 x Adapter card 1 x Baffle 1 x Bag of screws 1 x Screwdriver
