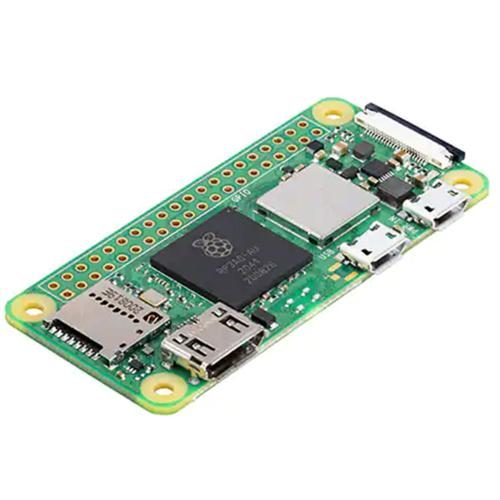

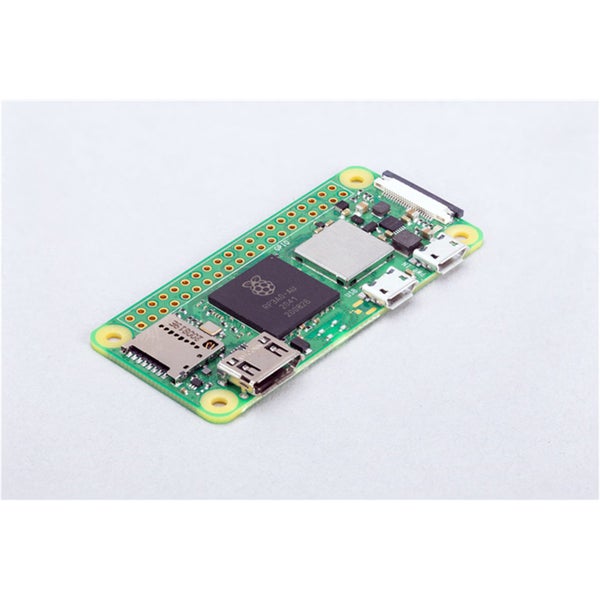

Raspberry Pi Zero 2 W ARM 64-bit Cortex-A53 CPU, 512MB SDRAM, 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth, BLE, Composite video and reset pins via solder test points

Just as small. Five times as fast. At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero. Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W. All in the same tiny 65mm x 30mm form factor.

Documents:

• Getting started guide
• Raspberry Pi Zero 2 W product brief

Form factor 65mm×30mm

Processor Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)

Memory 512MB LPDDR2

Connectivity

• 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE, onboard antenna
• 1 × USB 2.0 interface with OTG
• HAT-compatible 40-pin I/O header footprint
• microSD card slot
• Mini HDMI port
• CSI-2 camera connector

Video

• HDMI interface
• Composite video

Multimedia

• H.264, MPEG-4 decode (1080p30)
• H.264 encode (1080p30)
• OpenGL ES 1.1, 2.0 graphics

Input power 5V DC 2.5A

Operating temperature -20°C to +70°C

Production lifetime Raspberry Pi Zero 2 W will remain in production until at least January 2028

Compliance For a full list of local and regional product approvals, please visit pip.raspberrypi.com
