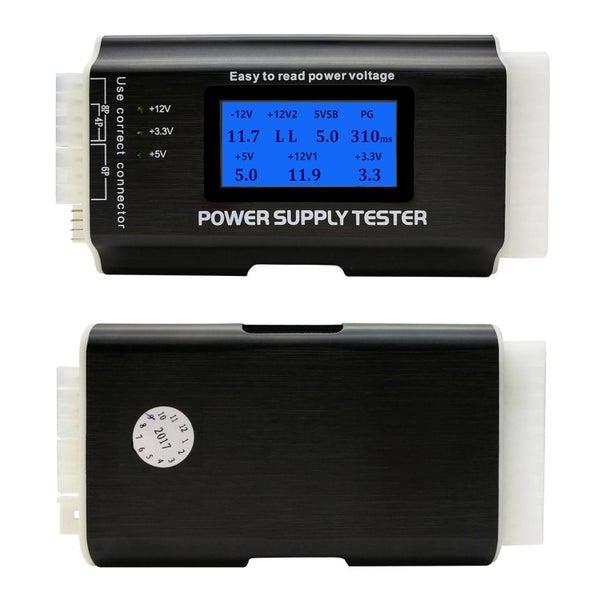

ATX Power Supply Tester 20 24 Pin Sata LCD PSU HD ATX BTX Voltage Test Source
Brand New ATX Power Supply Tester 20 24 Pin SATA LCD Diagnose PSU Tests Correct Voltage Outputs For 20.24 Pin ATX PC Power Supply This Brilliant Tool is used for testing the correct voltage outputs for a 20/24 Pin ATX PC power supply.

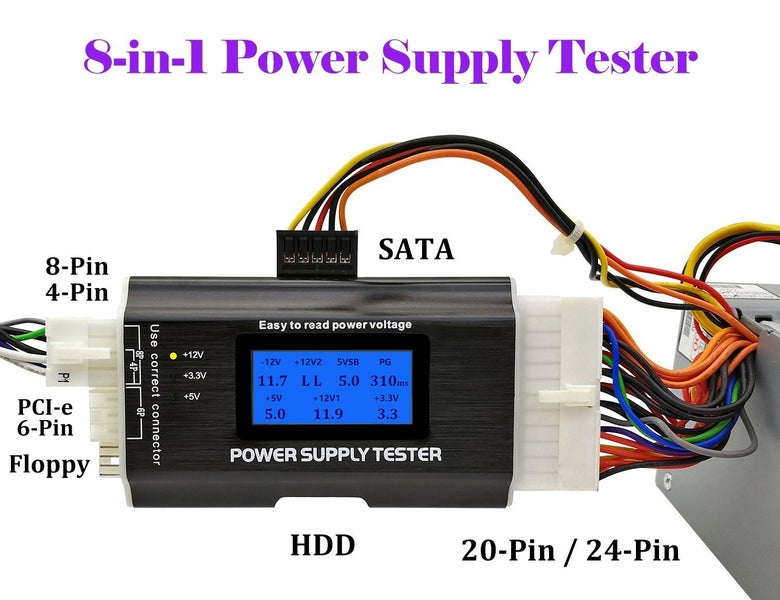

The SD Power Supply tester is a robust voltage tester for PC power supply ATX BTX and ITX compliant LCD indicates voltage status PC/SPS suitable for the ambitious hobby user or quick functional check in the specialized trade Voltage Source 20.24pin (ATX - Connector) Voltage test +12v, -12v, +5v, -5v, +3.3v, 5v stand by (SB) 12v Power Good (PG) Connectors: Floppy, HDD, CDROM, SATA, 4pin (P4), 8pin (Dual-CPU), 6pin (PCI Express)
The methods of operation:
- Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite.
- Power on the supply of power, will hear "DuDu" ring , if no flicker then the power supply output voltage is normal.
- If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed.
