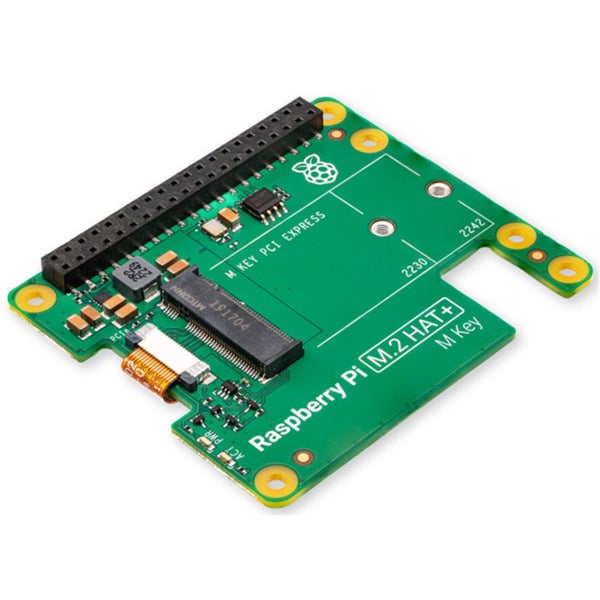

Raspberry Pi 5 Official M.2 HAT+ M Key Supports 2230 or 2242 Form Factor, M.2 - Format PCIe / NVMe SSD and Other PCIe Accessories

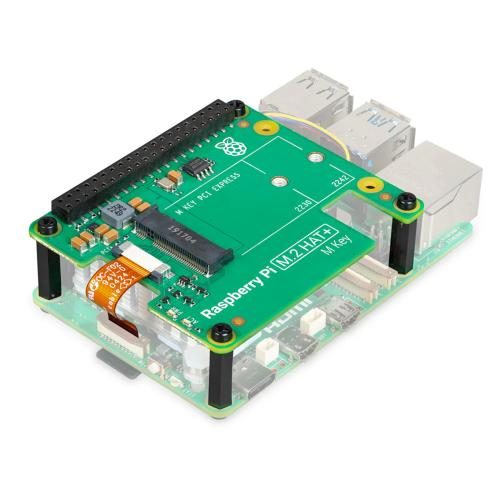

The Raspberry Pi M.2 HAT+ enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5's PCIe 2.0 interface, supporting fast (up to 500 MB/s) data transfer to and from NVMe drives and other PCIe accessories. Overview Raspberry Pi 5's single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm- pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices. The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.

• Supports a single-lane PCIe 2.0 interface with a maximum transfer rate of 500 MB/s.
• Compatible with M.2 M Key edge connector devices.
• Suitable for devices in 2230 and 2242 form factors.
• Provides up to 3A of power to connected M.2 devices.
• Includes power and activity indicators.
• Meets Raspberry Pi HAT+ specification standards.

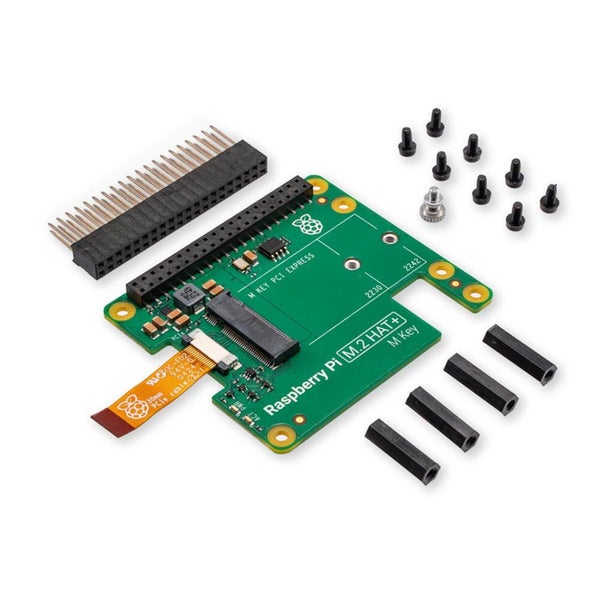

• Comes with installation accessories such as a ribbon cable, 16mm stacking header, threaded spacers, screws, and a knurled double-flanged screw for securing the M.2 peripheral.
• Operates within a temperature range of 0°C to 50°C. Documents: Raspberry Pi M.2 HAT+ product brief Raspberry Pi M.2 HAT+ assembly instructions Raspberry Pi M.2 HAT+ schematics

Manufacturer Raspberry Pi Product No. SC1165
