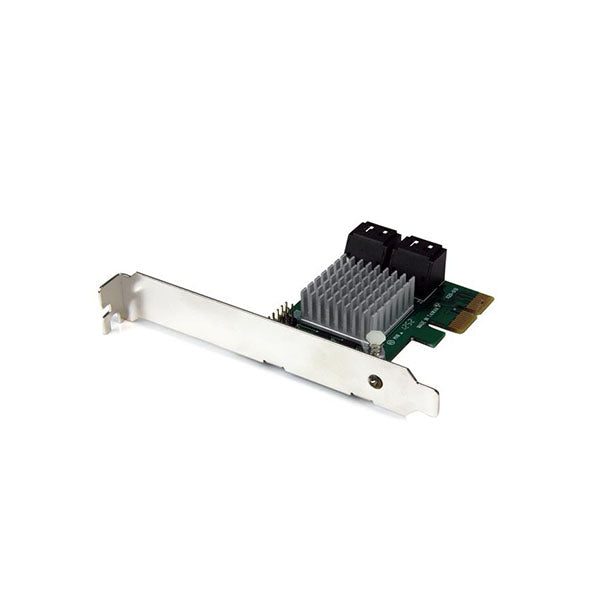

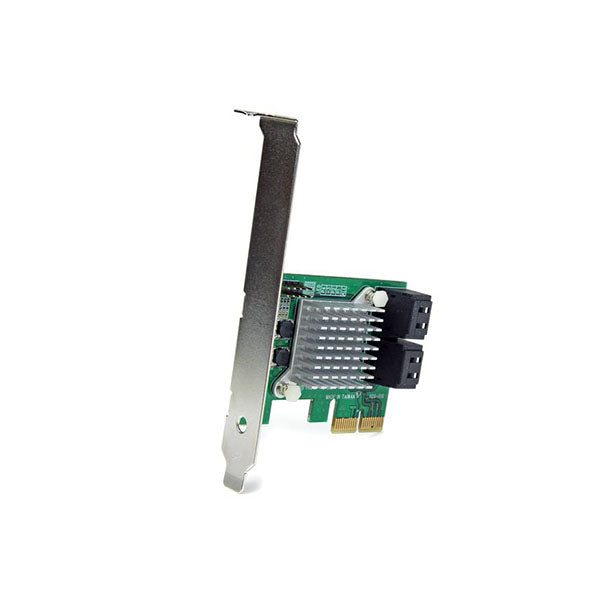

STARTECH 4 PORT PCI EXPRESS SATA III 6GBPS RAID CONTROLLER CARD

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs). Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.

SPECIFICATIONS

Basic Brand Name: StarTech Controller Type: Serial ATA/600 Form Factor: Plug-in Card Host Interface: PCI Express 2.0 x2 Product Type: SATA Controller RAID Levels: 0 1 1+0 JBOD RAID Supported: Yes TAA Compliant: Yes Total Number of SATA Ports: 4

General Information Brand Name: StarTech Manufacturer Part Number: PEXSAT34RH Manufacturer: StarTech Packaged Quantity: 1 Product Name: 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink Product Type: SATA Controller

Interfaces/Ports Number of SATA Ports (Internal): 4 Total Number of SATA Ports: 4

Miscellaneous Additional Information: OS Compatibility: Windows(R) 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vis...
