Lenovo ThinkPad Thunderbolt 3 Gen2 Docking Station 230W

Features: ** Hi-speed Thunderbolt 3 technology, providing 40Gbps data speed ** Innovative cable connector delivers data, display, and power up to 170-watt or 230-watt to charge high-performance ThinkPad Mobile Workstations ** Enhanced performance with professional video support for maximum four displays ** 5K UHD video experience through DisplayPort ports or Thunderbolt port ** 5 x USB3.1 A ports delivering up to 10Gps of high-speed USB data ** Enterprise manageability with PXE boot, and Wake-On LAN and MAC address through.

To enable the Thunderbolt dock when connected to the computer for the first time, do either of the following: ** Confirm the change when prompted if you have the administrator privilege. ** Enter the ThinkPad Setup program (BIOS) and go to the Config menu. Select Thunderbolt 3 --> Security level --> No Security. The dock will be enabled automatically.

Before using ThinkPad Thunderbolt 3 Dock (230W): ** Ensure your computer BIOS, drivers are up to date ** Ensure the Thunderbolt Software are installed on your computer ** Ensure Intel UHD and NVIDIA Graphics Driver is up to date

For product matrix compatibility please refer to the following link, https://support.lenovo.com/us/en/solutions/pd500547

For Display & Video Output Configurations refer to the following link, https://support.lenovo.com/us/en/solutions/pd029622

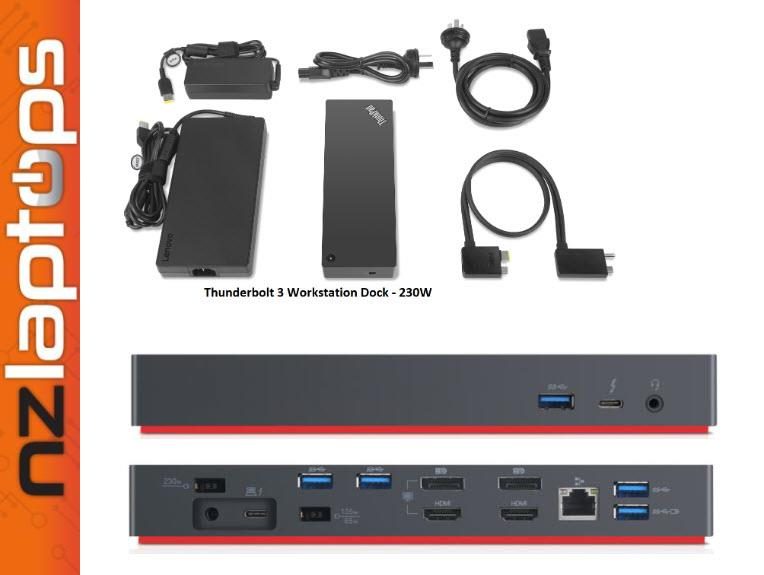

Model: DK1841 PN: 03X7538 Type 40AN Condition: Excellent, A Grade Warranty: 3 Months Return To Base In The Box: Dock, 2x Power Adapters (230W & 65W) & 2x Power Leads, TBT3 Dual Port Cable

Ports:

2x DisplayPort 2x HDMI 5x USB 3.0 (1 x Powered) 1x USB-C (Thunderbolt 3 downstream, 5V, 3A) 1x 3.5mm Audio Jack (4 pole) 1x Gigabit Ethernet

Official Compatibility:

ThinkPad X1 Yoga 2nd Gen ThinkPad X1 Yoga 3rd Gen ThinkPad T570 ThinkPad P51s ThinkPad T580 ThinkPad P52s

For any detailed questions you
