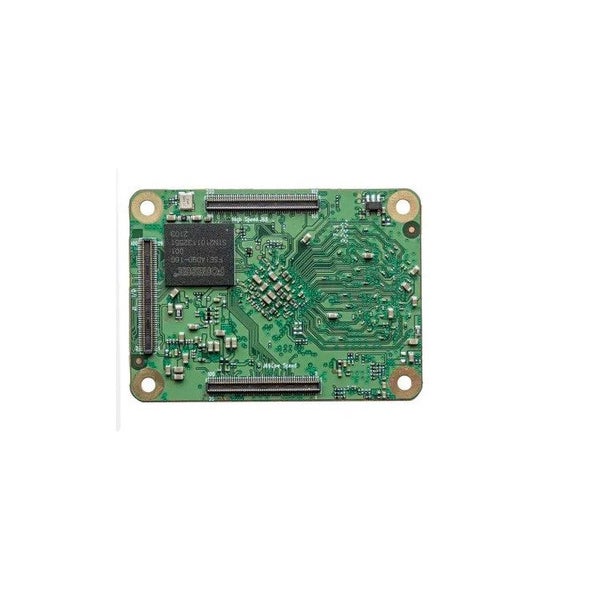

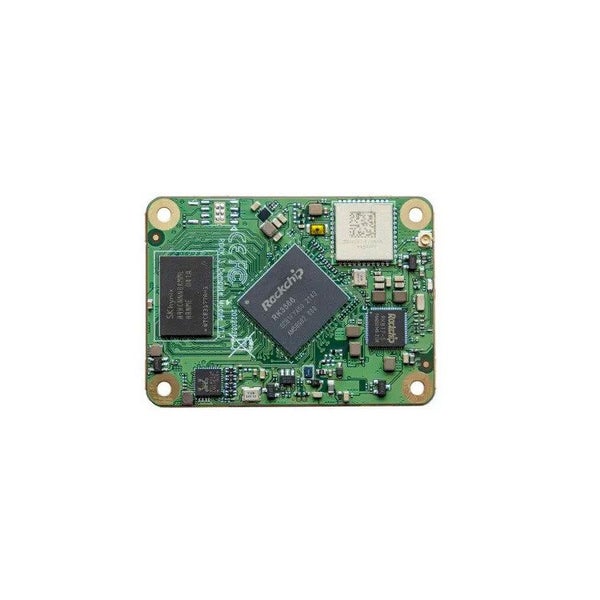

The ROCK 3 Compute Module (CM3) is a System on Module (SoM) based on a powerful Rockchip RK3566 System on Chip (SoC), Quad-core Arm(R) Cortex(R)-A55 CPU and Arm Mali(TM)-G52-2EE GPU. This CM3 is designed to increase the performance and capabilities of your design applications. With a 2GB LPDDR4 RAM, 16GB eMMC flash storage and wireless connectivity, including WiFi 5 and Bluetooth(R) 5.0, and many other class-leading features incorporated in this compact board of just 55mm x 40mm, the ROCK 3 Compute Module can be easily integrated into different industrial and multimedia projects. CM3 is developed by OKdo Technology in collaboration with Radxa, providing an out-of-the-box, cost-efficient solution that expands the capabilities of various embedded applications. Key features of the ROCK CM3 2GB: Rockchip RK3566 SoC with 64-bit Quad Core low power cores up to 2.0GHz GPU: Arm Mali(TM)-G52-2EE, OpenGL(R) ES1.1/2.0/3.0/3.1/3.2, Vulkan(R) 1.1, OpenCL(TM) 2.1 CPU: Quad-core Arm(R) Cortex(R)-A55 (ARMv8) 64-bit @ 2.0GHz NPU: 1 TOPs@INT8, support INT8, INT16, FP16, BFP16, support deep learning frameworks such as TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android(TM) NN, etc. RAM: 2GB LPDDR4 Memory: 32bit DDR4/3/3L/LPDDR4/4X/3 and support eMMC 5.1 and SFC Display: Single display engine, HDMI2.0, eDP 1.3, Dual MIPI-DSI, combo with single LVDS, 24bit RGB/BT1120 and EBC interface Multimedia: 4K H.265/H.264/VP9 video decoder and 1080p@60fps H.264/H.265 video encoder Video input: 8M Pixel ISP and 1 x 4 lanes or 2 x 2 lanes MIPI CSI-2 and DVP interface Audio interface: I2S0/I2S1 with 8 channels, IS2/I2S3 with 2 channels, SPDIF0, PDM0 with 8 channels, TDM) with 8 channels and Voice Activity Detection (VAD). High-Speed Interface: One USB 3.0 host, two SATA 3.0, one PCIE2.1, two SerDes (serialiser/deserialiser) lanes, dual USB 2.0 host and one USB 2.0 OTG and a single RGMII interface Security: Arm TrustZone(R) security extension, Secure Video Path, Secure JTAG to debug, ...
