***The first photo corresponds to the current option. Selecting different colors from the listing will update the displayed image accordingly.

ESTIMATED TIME OF DELIVERY: 7-12 Business days from our CHINA warehouse

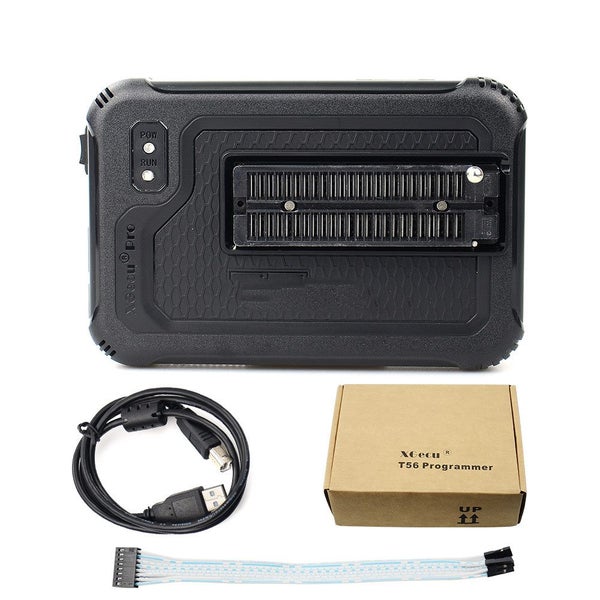

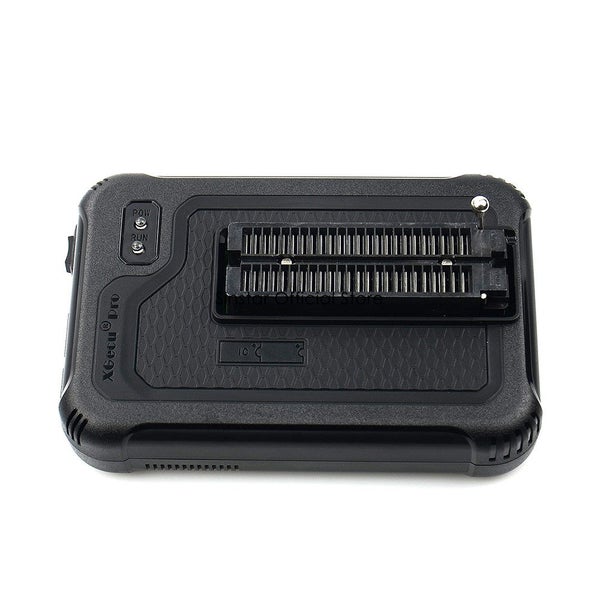

Hot T56 Programmer for XGecu Powerful Support Nor Flash / NAND Flash / EMMC Fast Reading Speed Test Product Smart Calculator 1. Supports wider chip range, larger capacity, faster speed: The software interface is clear, smooth and easy to use. more functions. easy to upgrade software . Ultra-high cost performance, suitable for small batch programming below 5000 , also suitable for developers and professional maintenance personnel. Support chip model: 24/25/26/93 serial EEPROM, 27/28/29/36/37/39/49/50 EPROM, Paged EPROM, FLASH memory (NOR, NAND, SPI NAND, EMMC, NVRAM, SRAM, CPLD (GAL), etc. Support package: add DIP42/PLCC44/SOP44/QFP44/TSOP48/TSOP56/BGA48/BGA63/BGA64 /BGA100/BGA153/BGA162/BGA169/BGA221 on the basis of TL866II. NAND EMMC supports maximum capacity up to 256G Support Logic IC Testing Support VGA_HDMI ISP and VGA Tools

2.Programmer parameters (1). 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure, USB2.0 HS 480MHZ transmission (2). 56 pin full drive IO design. All pins have a maximum operating frequency of 50MHZ and high reliability. (3). Stable and reliable 8Pins in-circuit programming interface, the wire Lehgth is more than 30CM,and it can communicate reliably at 25MHZ. 25 series / EMMC in-circuit programming with a maximum clock frequency of 40MHZ-50MHZ

(4). VCC voltage 1.2-6.5V 64 levels adjustable, VPP voltage 6.5-25V 64 levels adjustable. IO communication signal voltage continuously adjustable 1.2V-3.6V VCC 120MA-320MA overcurrent protection continuously adjustable VPP 120MA overcurrent protection.

(5). Power consumption: 5V <500MA. All chips do not need external power sup...
